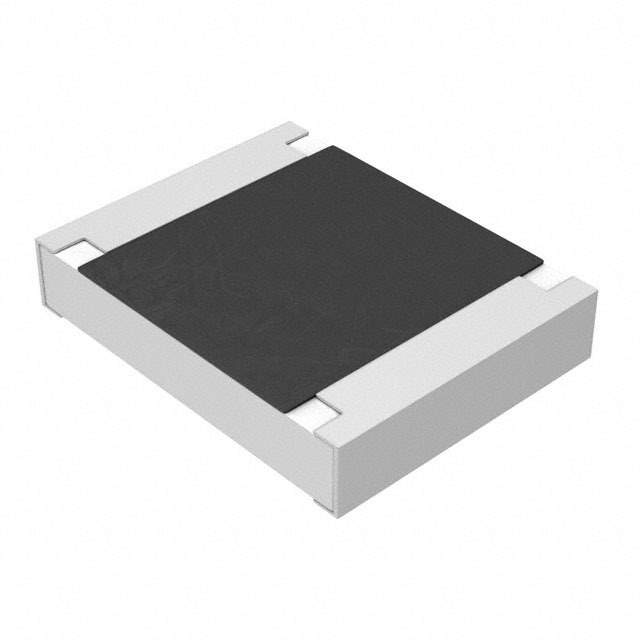

ERJ-P14J2R2U Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Resistance 2.2 Ohms
Tolerance ±5%
Power (Watts) 0.5W, 1/2W
Composition Thick Film
Features Automotive AEC-Q200, Pulse Withstanding
Temperature Coefficient -100/ +600ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Case / Package 1210 (3225 Metric)
Supplier Device Package 1210
Ratings AEC-Q200
Size / Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.028" (0.70mm)
Number of Terminations 2
Base Product Number ERJ-P14
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Other Part Number P2.2ASCT-NDR,P2.2ASTR,P2.2ASTR-NDR,P2.2ASDKR,P2.2ASCT,ERJP14J2R2U
Standard Package 5,000
Win Source Part Number 1326529-ERJ-P14J2R2U
Ultra Librarian 3D Model Ultra Librarian ERJ-P14J2R2U CAD Model

Description

The Panasonic Electronic Components ERJ-P14J2R2U 1326529 is a chip resistor that is used in surface mount applications.

  • Product Name: ERJ-P14J2R2U 1326529
  • Manufacturer: Panasonic Electronic Components
  • Application: Surface Mount
  • Type: Thick Film Resistor
  • Resistance: 2.2 Ohms
  • Tolerance: ±5%
  • Power Rating: 0.5W (1/2W)
  • Temperature Coefficient: -100/ +600ppm/°C
  • Rating: AEC-Q200
  • Application: Automotive
  • Size/Dimension: 0.126" L x 0.098" W (3.20mm x 2.50mm)
  • Height-Seated (Max): 0.028" (0.70mm)
  • Terminations: 2
  • Case/Package: 1210 (3225 Metric)
  • Temperature Range: -55°C to 155°C
  • Packaging: Reel - TR
  • Quantity per Package: 5,000 pcs
