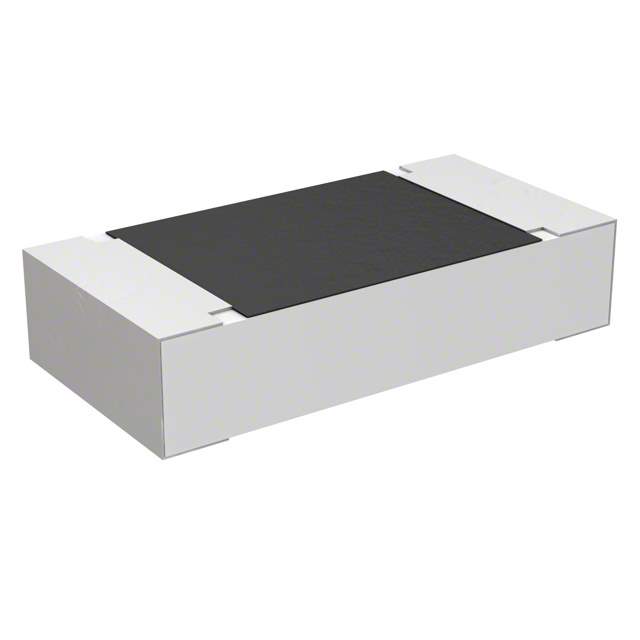

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Mounting SMD (SMT)
Case / Package 1206
Case Code (Imperial) 1206
Case / Package 3216
Composition Metal Film, Thin Film
Contact Plating Tin
Depth 1.6 mm
Height 600 µm
Lead Free Yes
Length 3.2 mm
Maximum Operating Temperature 155 °C
Max Power Dissipation 250 mW
Military Standard Not
Min Operating Temperature -55 °C
Mount Surface Mount
Number of Pins 2
Number of Terminations 2
Packaging Cut Tape
Power Rating 250 mW
Radiation Hardening No
REACH SVHC No SVHC
Resistance 820 Ω
RoHS Compliant
Temperature Coefficient 25 ppm/°C
Termination SMD/SMT
Tolerance 0.1 %
Voltage Rating 150 V
Voltage Rating (DC) 150 V
Width 1.6002 mm
Win Source Part Number 1057581-ERA8AEB821V
Categories Chip Resistor - Surface Mount
Manufacturer Panasonic
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian ERA8AEB821V CAD Model

Description

The ERA8AEB821V is a chip resistor - surface mount component with a resistance of 820 Ω and a power rating of 250 mW from Panasonic.

  • Mounting: SMD/SMT mounted
  • Case/Package: 3216 (1206 Metric)
  • Voltage Rating: 150 V
  • Number of Pins: 2
  • Packaging: cut tape
  • Tolerance: 0.1 %
  • Temperature Coefficient: 25 ppm/°C
  • Category: Chip Resistor - Surface Mount
  • Popularity: low
  • Maximum Operating Temperature: 155 °C
  • Lead-Free: Yes
  • RoHS Compliant: Yes
