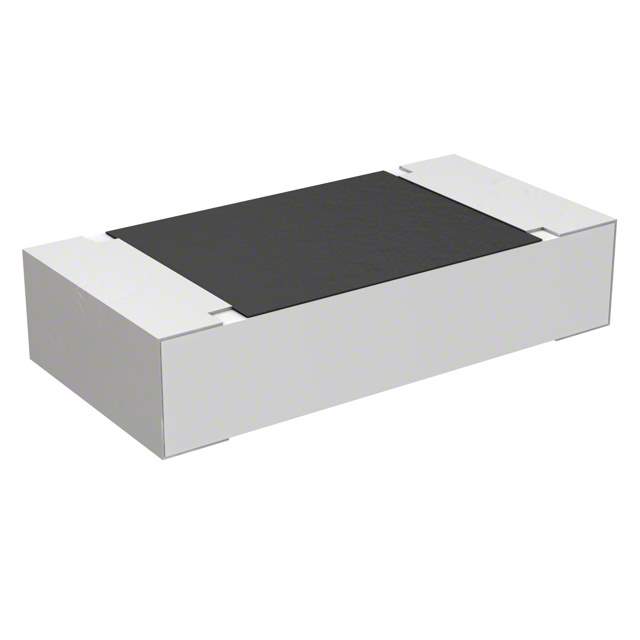

ERA8AEB54R9V Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Mounting SMD (SMT)
Case / Package 1206
Case Code (Imperial) 1206
Case / Package 3216
Composition Thin Film
Contact Plating Tin
Features Automotive AEC-Q200
Height 711.2 µm
Lead Free Yes
Length 3.2004 mm
Maximum Operating Temperature 155 °C
Max Power Dissipation 250 mW
Min Operating Temperature -55 °C
Mount Surface Mount
Number of Terminations 2
Packaging Cut Tape
Power Rating 250 mW
REACH SVHC No SVHC
Resistance 54.9 Ω
RoHS Compliant
Temperature Coefficient 25 ppm/°C
Termination SMD/SMT
Tolerance 0.1 %
Voltage Rating 150 V
Voltage Rating (DC) 150 V
Width 1.6002 mm
Win Source Part Number 1057565-ERA8AEB54R9V
Categories Chip Resistor - Surface Mount
Manufacturer Panasonic
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian ERA8AEB54R9V CAD Model

Description

The Panasonic ERA8AEB54R9V is a chip resistor used in a variety of applications.

  • Resistance: 54.9 Ω
  • Power Rating: 250 mW
  • Technology: surface mount
  • Tolerance: 0.1%
  • Temperature Coefficient: 25 ppm/°C
  • Package: 3216
  • Units per Package: 1
  • Package Type: cut tape
  • ECCN: EAR99 compliant
  • RoHS: RoHS compliant
