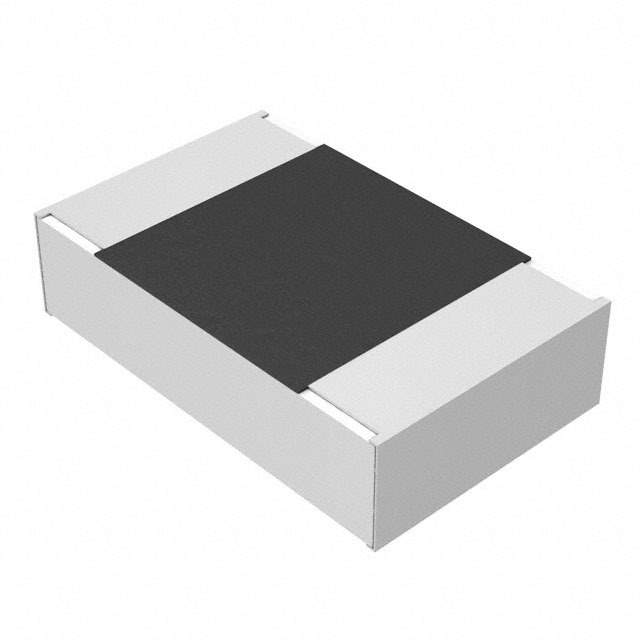

The ERA6AEB562V is a surface mount chip resistor manufactured by Panasonic. Part of the ERA series, it is designed to offer high reliability and stability in diverse electronic circuits. This resistor is suitable for automated assembly processes and ensures consistent performance in various applications.

Applications:

• Current limiting in power supplies
• Voltage dividers in instrumentation circuits
• Feedback resistors in operational amplifiers
• Pull-up and pull-down resistors in digital systems
• Termination resistors in high-speed data lines

Features:

• Surface Mount Technology (SMT) for automated assembly
• High reliability and stability over a wide temperature range
• Compact size (typically 0805 or 1206, verify based on datasheet)
• RoHS compliant
• Resistance value: 5.6 kΩ (562 = 56 x 10^2)

Benefits:

• Reduces assembly costs due to automated placement
• Ensures consistent performance in various operating conditions
• Saves valuable board space in high-density circuit designs
• Environmentally friendly due to RoHS compliance
• Provides a precise resistance value for accurate circuit operation

Additional Details:

The ERA6AEB562V has a resistance value of 5.6 kΩ (kiloohms). The '562' marking indicates the resistance value: 56 x 10^2 ohms. The power rating for this resistor is typically 0.125W or 0.25W, depending on the specific size and series. The tolerance is generally ±5%, but the component's datasheet should be checked for confirmation. The resistor is designed to operate within a specified temperature range, typically from -55°C to +155°C. The temperature coefficient of resistance (TCR) is an essential factor, indicating how the resistance varies with temperature; typical values are ±100 ppm/°C or ±200 ppm/°C. Packaging is normally on tape and reel for automated pick-and-place assembly.

Adhering to proper soldering techniques, as detailed in the manufacturer's datasheet, is crucial for ensuring reliable performance and avoiding damage to the resistor during assembly. Storage conditions should also be monitored to prevent moisture absorption, which can negatively impact the resistor's long-term stability. Employing the correct reflow soldering profile is critical for surface mount components such as this resistor. The resistor is ideal for a broad array of general purpose electronic applications, providing stable and reliable resistance in a compact form factor.
