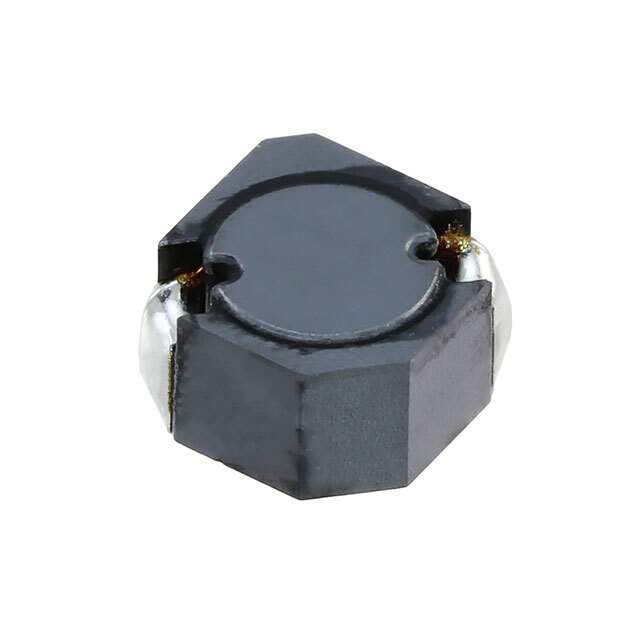

The ELL8TP151MB is a fixed inductor from Panasonic, designed to provide a specific inductance for various electronic applications. It is commonly used for filtering, impedance matching, and energy storage in electronic circuits.

Applications:

• DC-DC converters
• Power supplies
• EMI filtering
• RF circuits
• Signal processing circuits

Features:

• Fixed inductance value (150μH)
• Compact size
• High reliability
• Surface mount design
• RoHS compliant

Benefits:

• Provides stable and predictable inductance in critical circuit functions.
• Effective noise suppression in power and signal lines.
• Space-saving design due to compact size.
• Easy integration into automated manufacturing processes.
• Environmentally friendly due to RoHS compliance.

Additional Details:

The ELL8TP151MB has a nominal inductance of 150 μH (microhenries). It is typically available in a surface-mount package, suitable for automated assembly processes. Key specifications to consider when selecting this inductor include inductance tolerance, self-resonant frequency (SRF), DC resistance (DCR), and rated current. These parameters determine the inductor's performance in a given application. Operating temperature range and storage temperature range are also important for long-term reliability. Proper application of this inductor can improve the efficiency and performance of electronic devices by effectively filtering noise, storing energy, and matching impedance in RF and signal processing circuits. Consult the official datasheet for detailed electrical characteristics and mechanical dimensions.
