Same model may have multiple batches, images only for reference.

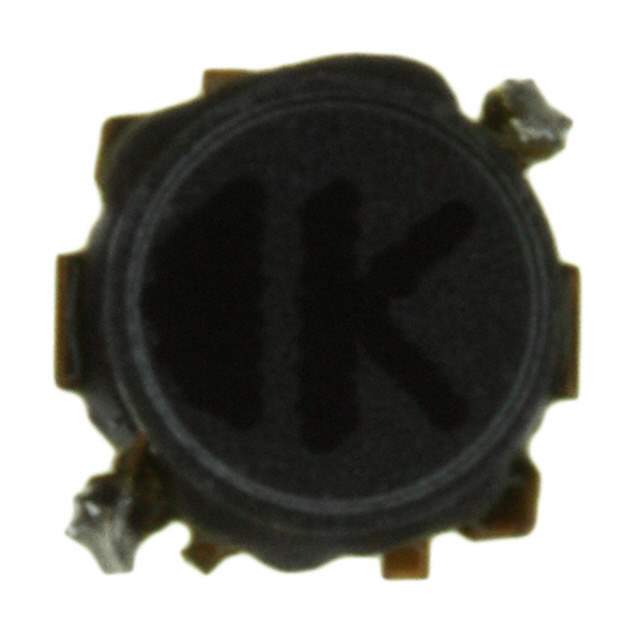

ELL-VGG6R8N Real Image
Same model may have multiple batches, images only for reference.

ELL-VGG6R8N

Part No ELL-VGG6R8N
Manufacturer Panasonic
Catalog Fixed Inductors
Description FIXED IND 6.8UH 800MA 230MOHM SM / 6.8 µH Shielded Wirewound Inductor 800 mA 230mOhm Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Panasonic Electronic Components
Series G
Package Tape & Reel
Product Status Obsolete
Type Wirewound
Inductance 6.8 µH
Tolerance ±30%
Current Rating (Amps) 800 mA
Current - Saturation (Isat) 1A
Shielding Shielded
DC Resistance (DCR) 230mOhm
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.118" L x 0.118" W (3.00mm x 3.00mm)
Height - Seated (Max) 0.059" (1.50mm)
Base Product Number ELL-VGG
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Other Names PCD2303DKR,PCD2303TR,PCD2303CT,ELLVGG6R8N
Standard Package 2,000
Win Source Part Number 969864-ELL-VGG6R8N
Ultra Librarian 3D Model Ultra Librarian ELL-VGG6R8N CAD Model

Description

The ELL-VGG6R8N is a wirewound inductor that is part of the G series. The ELL-VGG6R8N is the manufacturer.

  • Series: G
  • Package: Tape and Reel
  • Shielding: Shielded
  • Inductance: 6.8 µH
  • Standard Package: 2,000
  • Mounting: SMD (SMT)
  • Operating Temperature Range: -40°C to 105°C
  • Tolerance: ±30%
  • DC Resistance (DCR): 230mOhm
  • Current Rating (Amps): 800 mA
  • Inductance Frequency-Test: 100 kHz
  • HTSUS: 8504.50.8000
  • Other Names: PCD2303DKR, PCD2303TR, PCD2303CT, ELLVGG6R8N
  • Status: Obsolete
