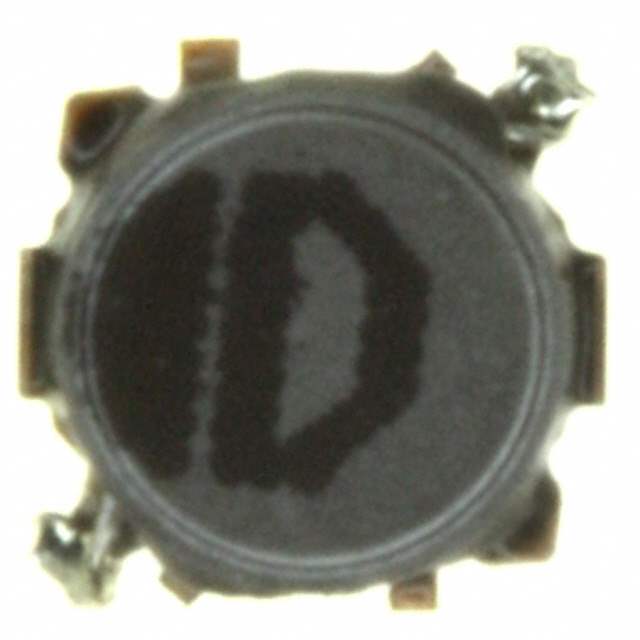

ELL-VGG2R2N

Part No ELL-VGG2R2N
Manufacturer Panasonic
Catalog Fixed Inductors
Description FIXED IND 2.2UH 1.4A 92 MOHM SMD
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Active
Type Wirewound
Inductance 2.2μH
Tolerance ±30%
Current Rating 1.4A
Current - Saturation 1.6A
DC Resistance (DCR) 92 mOhm
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.059" (1.50mm)
Win Source Part Number 130647-ELL-VGG2R2N
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian ELL-VGG2R2N CAD Model

Description

Product Overview

The ELL-VGG2R2N component offers a balanced blend of performance and reliability, catering to both common and specialized electronic tasks. It stands out with its high adaptability.

Features and Benefits

  • Balanced Performance: Provides reliable operation suitable for diverse applications.
  • Compact and Light: Facilitates ease of installation in areas with space constraints.
  • Durable Construction: High-quality material usage ensures a long lifespan.
  • Wide Compatibility: Can be seamlessly integrated with various electronic systems and architectures.

Applications

  • Sensing Equipment
  • Home Appliances
  • Control Systems
  • Portable Electronic Devices
  • Automated Process Control

Additional Details

The ELL-VGG2R2N is designed considering current industry practices, making it a preferred choice for both standard and innovative projects in electronic engineering.
