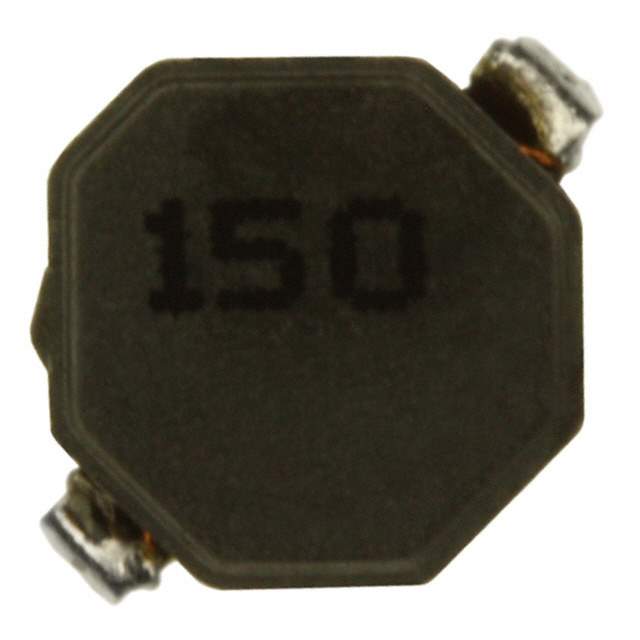

ELL-5PS150M Real Image
Same model may have multiple batches, images only for reference.

ELL-5PS150M

Part No ELL-5PS150M
Manufacturer Panasonic
Catalog Fixed Inductors
Description FIXED IND 15UH 1A 170 MOHM SMD / 15 µH Shielded Wirewound Inductor 1 A 170mOhm Nonstandard
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Panasonic Electronic Components
Series S
Package Tape & Reel
Product Status Obsolete
Type Wirewound
Inductance 15 µH
Tolerance ±20%
Current Rating (Amps) 1 A
Current - Saturation (Isat) 790mA
Shielding Shielded
DC Resistance (DCR) 170mOhm
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.197" L x 0.197" W (5.00mm x 5.00mm)
Height - Seated (Max) 0.079" (2.00mm)
Base Product Number ELL-5PS
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Other Names PCD2235CT,PCD2235TR,PCD2235DKR,ELL5PS150M
Standard Package 2,000
Win Source Part Number 1057092-ELL-5PS150M
Ultra Librarian 3D Model Ultra Librarian ELL-5PS150M CAD Model

Description

The ELL-5PS150M is a wirewound inductor with a shielding feature. ELL-5PS150M is a part of the S series and is manufactured by Panasonic Electronic Components.

  • Inductance: 15 µH
  • Tolerance: ±20%
  • Package: Tape and Reel
  • DC Resistance (DCR): 170mOhm
  • Current Rating: 1 A
  • Height: 0.079" (2.00mm)
  • Dimension: 0.197" L x 0.197" W (5.00mm x 5.00mm)
  • Alternative Parts: SRN5020-150M, NRS5020T150MMGJ, 1235AS-H-150M=P3, NRS5020T150MMGJV, and ASPI-4030S-150M-TELL5PS150M
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8504.50.8000
