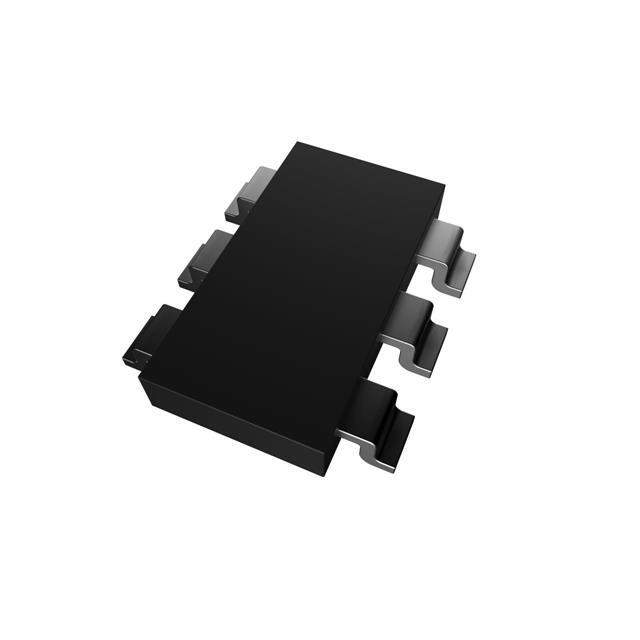

BAS70TW-TP Real Image
Same model may have multiple batches, images only for reference.

BAS70TW-TP

Part No BAS70TW-TP
Manufacturer Micro Commercial Co
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY SCHOTTKY 70V SOT363
Datasheet
BAS70TW-TP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Micro Commercial Co
Packaging Reel - TR
Status Active
Diode Configuration 3 Independent
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 70V
Current - Average Rectified (Io) (per Diode) 70mA (DC)
Voltage - Forward (Vf) (Max) @ If 1V @ 15mA
Reverse Recovery Time (trr) 5ns
Current - Reverse Leakage @ Vr 100nA @ 50V
Operating Temperature - Junction -55°C to 125°C
Mounting SMD (SMT)
Case / Package SOT-363
Win Source Part Number 1022124-BAS70TW-TP
Popularity Medium
Supply and Demand Status Sufficient
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian BAS70TW-TP CAD Model

Description

The BAS70TW-TP is a Schottky diode manufactured by Micro Commercial Co.

  • Supply and demand status: sufficient
  • Description: high-speed switching diode that is designed to provide a low forward voltage drop and fast switching speed
  • Suitable for use in: various applications, such as power supplies, battery chargers, and other applications that require high-speed switching capabilities
