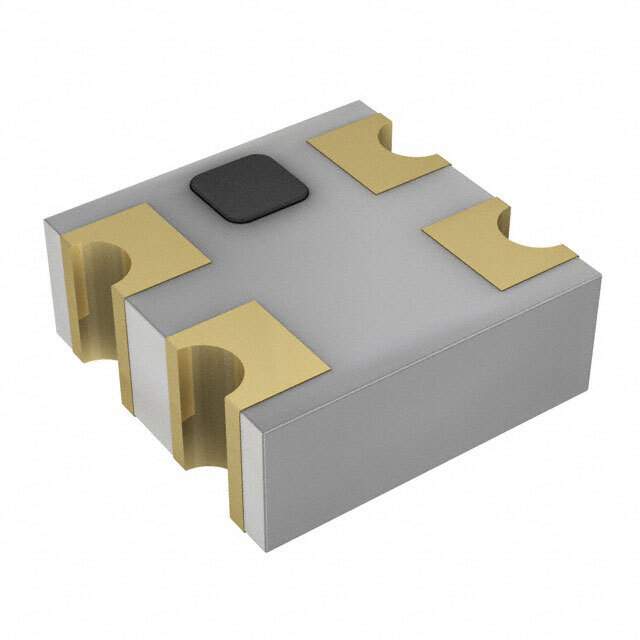

EHF-FD1540 Real Image
Same model may have multiple batches, images only for reference.

EHF-FD1540

Part No EHF-FD1540
Manufacturer Panasonic
Catalog RF Directional Coupler
Description RF DIR COUPLER 800MHZ-1GHZ 0603  /  RF Directional Coupler Telecom/Datacom Systems 800MHz ~ 1GHz 17 ± 2dB 0603 (1608 Metric)
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Directional Coupler
Mfr Panasonic Electronic Components
Package Tape & Reel (TR),Cut Tape (CT)
Product Status Obsolete
Coupler Type Standard
Frequency 800MHz ~ 1GHz
Coupling Factor 17 ± 2dB
Applications Telecom/Datacom Systems
Insertion Loss 0.25dB
Isolation 25dB
Package / Case 0603 (1608 Metric)
Supplier Device Package 0603 (1608 Metric)
Base Product Number EHF-FD154
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Other Names EHFFD1540,P10684TR-NDR,P10684BK,P10684TR,P10684-ND,P10684CT-NDR,P10684,P10684CT
Standard Package 4,000
Win Source Part Number 1056992-EHF-FD1540
Ultra Librarian 3D Model Ultra Librarian EHF-FD1540 CAD Model

Description

The Panasonic Electronic Components EHF-FD1540 is an RF directional coupler with a frequency range of 800MHz to 1GHz and a coupling factor of 17±2dB.

  • Frequency Range: 800MHz to 1GHz
  • Coupling Factor: 17±2dB
  • Insertion Loss: 0.25dB
  • Isolation: 25dB
  • Package: 0603 (1608 Metric)
  • Standard Package: 4,000
  • Suitable for: Telecom/datacom systems
  • Status: Obsolete
  • RoHS Non-Compliant: Yes
