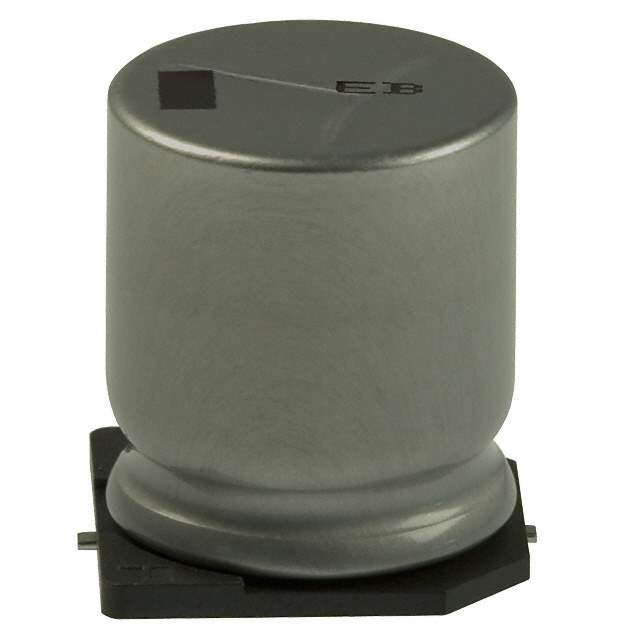

Same model may have multiple batches, images only for reference.

EEV-EB2E680M

Name: EEV-EB2E680M
Brand: Panasonic
SKU: 1381993
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	EEV-EB2E680M
Manufacturer	Panasonic
Catalog	Aluminum Capacitors
Description	CAP ALUM 68UF 20% 250V SMD / 68 µF 250 V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Mfr	Panasonic
Series	EB
Package	Tape & Reel
Product Status	Obsolete
Capacitance	68 µF
Tolerance	±20%
Voltage - Rated	250 V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	5000 Hrs @ 105°C
Temperature Range - Operating	-25°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	544.5 mA @ 120 Hz
Ripple Current @ High Frequency	990 mA @ 100 kHz
Lead Spacing	-
Size / Dimension	0.709" Dia (18.00mm)
Height - Seated (Max)	0.866" (22.00mm)
Surface Mount Land Size	0.748" L x 0.748" W (19.00mm x 19.00mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
Base Product Number	EEV-EB
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Standard Package	75 pcs
Win Source Part Number	1381993-EEV-EB2E680M
Ultra Librarian 3D Model	Ultra Librarian EEV-EB2E680M CAD Model

Description

The Panasonic 1381993-EEV-EB2E680M is an aluminum electrolytic capacitor from the EB series by Panasonic.

Series: EB
Capacitance: 68μF
Voltage Rating: 250V
Mounting Type: Surface Mount
Package: Tape & Reel
Size/Dimension: 0.709" (18.00mm) in diameter
Height: 0.866" (22.00mm)
Application: General Purpose
Temperature Range: -25°C to 105°C
Moisture Sensitivity Level: 1 (Unlimited)
