Same model may have multiple batches, images only for reference.

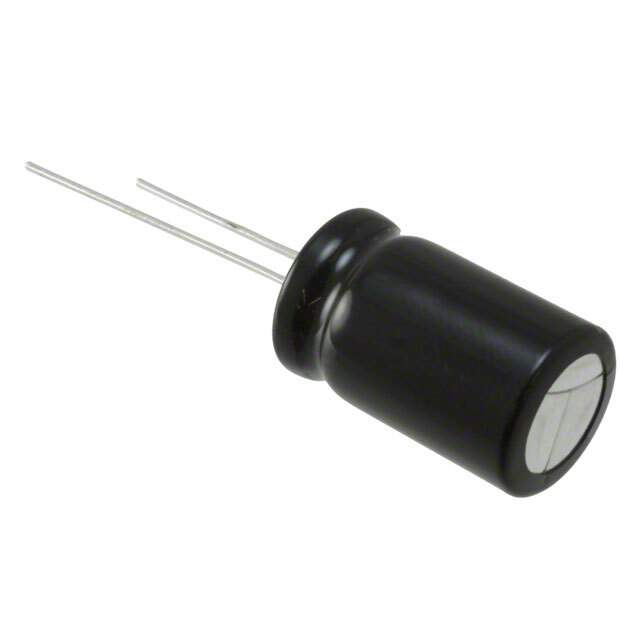

EEU-HD1C472B Real Image
Same model may have multiple batches, images only for reference.

EEU-HD1C472B

Part No EEU-HD1C472B
Manufacturer Panasonic
Catalog Aluminum Capacitors
Description CAP ALUM 4700UF 20% 16V RADIAL / 4700 µF 16 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C
Datasheet
EEU-HD1C472B Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Panasonic Electronic Components
Series HD
Package Cut Tape (CT) Tape & Box (TB)
Capacitance 4700 µF
Tolerance ±20%
Voltage - Rated 16 V
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 1.48 A @ 120 Hz
Ripple Current @ High Frequency 1.702 A @ 100 kHz
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.492" Dia (12.50mm)
Height - Seated (Max) 1.063" (27.00mm)
Mounting Type Through Hole
Package / Case Radial, Can
Base Product Number EEU-HD
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1351948-EEU-HD1C472B
Ultra Librarian 3D Model Ultra Librarian EEU-HD1C472B CAD Model

Description

The Panasonic Electronic Components 1351948-EEU-HD1C472B is a radial, can-shaped aluminum electrolytic capacitor.

  • Capacitance: 4700 μF
  • Voltage Rating: 16V
  • Tolerance: ±20%
  • Ripple Current: 1.48 A @ 120 Hz, 1.702 A @ 100 kHz
  • Lifetime @ Temperature: 2000 hours @ 105°C
  • Mounting Type: Through-Hole
  • Height: 1.063" (27.00mm)
  • Operating Temperature: -55°C to 105°C
  • Package: Cut Tape / Tape & Box
  • Quantity: 500
