Same model may have multiple batches, images only for reference.

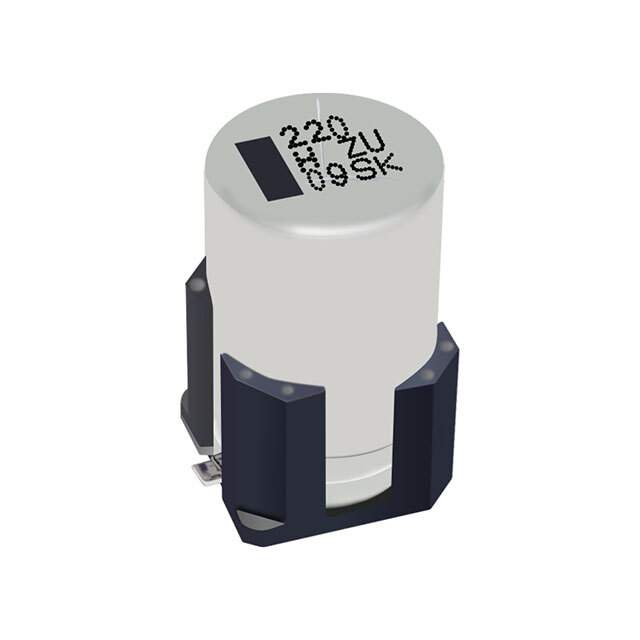

EEH-ZU1V471V Real Image
Same model may have multiple batches, images only for reference.

EEH-ZU1V471V

Part No EEH-ZU1V471V
Manufacturer Panasonic
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY HYB 470UF 35V SMD / 470 µF 35 V Aluminum - Polymer Capacitors Radial, Can - SMD 9mOhm 4000 Hrs @ 135°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum - Polymer Capacitors
Mfr Panasonic Electronic Components
Series ZU, Anti-Vibration
Package Tape & Reel
Type Hybrid
Capacitance 470 µF
Tolerance ±20%
Voltage - Rated 35 V
ESR (Equivalent Series Resistance) 9mOhm
Lifetime @ Temp. 4000 Hrs @ 135°C
Temperature Range - Operating -55°C ~ 135°C
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 825 mA @ 100 Hz
Ripple Current @ High Frequency 5.5 A @ 100 kHz
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.673" (17.10mm)
Surface Mount Land Size 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Base Product Number EEH-ZU
Standard Package 250
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1340020-EEH-ZU1V471V
Ultra Librarian 3D Model Ultra Librarian EEH-ZU1V471V CAD Model

Description

The 1340020-EEH-ZU1V471V is a hybrid aluminum polymer capacitor from the ZU series.

  • Features: Anti-Vibration
  • Tolerance: ±20%
  • Capacitance: 470 µF
  • Voltage - Rated: 35 V
  • Packaging: Tape & Reel (TR)
  • Surface Mount Land Size: 0.406" L x 0.406" W (10.30mm x 10.30mm)
  • Size / Dimension: 0.394" Dia (10.00mm)
  • Height - Seated (Max): 0.673" (17.10mm)
  • Operating Temperature: -55°C to 135°C
  • Ripple Current @ Low Frequency: 825 mA @ 100 Hz
  • Ripple Current @ High Frequency: 5.5 A @ 100 kHz
  • Package / Case: Radial, Can - SMD
  • Lifetime @ Temp.: 4000 Hrs @ 135°C
  • Ratings: AEC-Q200
  • MSL: 1 (Unlimited)
  • HTSUS: 8532.22.0020
  • Manufacturer: Panasonic Electronic Components
