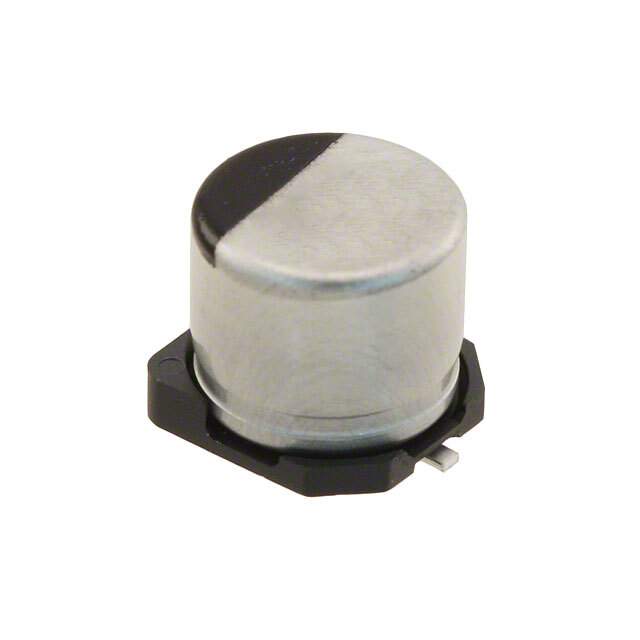

EEH-ZC1H220P

Name: EEH-ZC1H220P
Brand: Panasonic
SKU: 1330386
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	EEH-ZC1H220P
Manufacturer	Panasonic
Catalog	Aluminum - Polymer Capacitors
Description	CAP ALUM POLY HYB 22UF 50V SMD / 22 µF 50 V Aluminum - Polymer Capacitors Radial, Can - SMD 80mOhm 4000 Hrs @ 125°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum - Polymer Capacitors
Manufacturer	Panasonic Electronic Components
Packaging	Reel - TR
Type	Hybrid
Capacitance	22 µF
Tolerance	±20%
Voltage - Rated	50 V
ESR (Equivalent Series Resistance)	80mOhm
Lifetime @ Temp.	4000 Hrs @ 125°C
Temperature Range - Operating	-55°C ~ 125°C
Ratings	AEC-Q200
Applications	Automotive
Ripple Current @ Low Frequency	75 mA @ 100 Hz
Ripple Current @ High Frequency	750 mA @ 100 kHz
Size / Dimension	0.248" Dia (6.30mm)
Height - Seated (Max)	0.240" (6.10mm)
Surface Mount Land Size	0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting	Surface Mount
Case / Package	Radial, Can - SMD
Base Product Number	EEH-ZC
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Other Part Number	P15463CT,EEHZC1H220P,P15463TR,P15463DKR
Standard Package	1,000
Win Source Part Number	1330386-EEH-ZC1H220P
Ultra Librarian 3D Model	Ultra Librarian EEH-ZC1H220P CAD Model

Description

The Panasonic Electronic Components hybrid capacitor is a high-performance aluminum-polymer capacitor designed for automotive applications.

Capacitance: 22 µF
Voltage Rating: 50 V
Tolerance: ±20%
ESR (Equivalent Series Resistance): 80mOhm
Lifetime: 4000 Hrs @ 125°C
Ripple Current @ low frequency: 75 mA @ 100 Hz
Ripple Current @ high frequency: 750 mA @ 100 kHz
Case/Package: Radial, Can - SMD
Surface Mount Land Size: 0.260" L x 0.260" W (6.60mm x 6.60mm)
AEC-Q200 Rated: Yes
RoHS3 Compliant: Yes
Packaging: Reel - TR
Standard Package: 1,000
