Same model may have multiple batches, images only for reference.

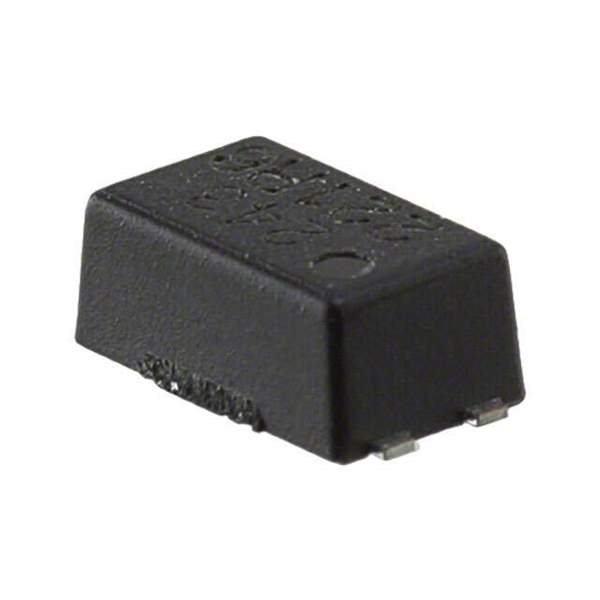

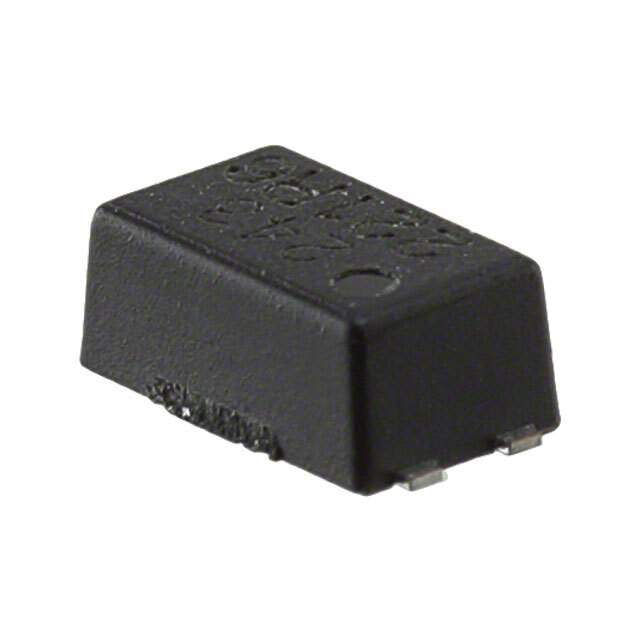

AQY221N2V1Y Real Image
Same model may have multiple batches, images only for reference.

AQY221N2V1Y

Part No AQY221N2V1Y
Manufacturer Panasonic
Catalog Solid State Relays
Description SSR RELAY SPST-NO 120MA 0-40V / Solid State SPST-NO (1 Form A) 4-SMD (0.175", 4.45mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Solid State Relays
Mfr Panasonic Electric Works
Series PhotoMOS™ AQY
Package Tape & Reel
Mounting SMD (SMT)
Circuit SPST-NO (1 Form A)
Output Type AC, DC (RF)
Voltage - Input 1.14VDC
Voltage - Load 0 V ~ 40 V
Load Current 120 mA
On-State Resistance (Max) 12.5 Ohms
Termination Style SMD (SMT) Tab
Package / Case 4-SMD (0.175", 4.45mm)
Supplier Device Package 4-SSOP
Base Product Number AQY221
MSL Level 2A (4 Weeks)
ECCN EAR99
HTSUS 8536.41.0030
Other Names AQY221N2V1Y-ND,255-2976-6,255-2976-1,255-2976-2
Standard Package 1,000
Win Source Part Number 1156262-AQY221N2V1Y
Ultra Librarian 3D Model Ultra Librarian AQY221N2V1Y CAD Model

Description

The AQY221N2V1Y is a PhotoMOS solid-state relay designed for use in AC and DC applications.

  • Circuit Configuration: SPST-NO (1 Form A)
  • On-State Resistance (Max): 12.5 Ohms
  • Load Current: 120mA
  • Load Voltage: 0V to 40V
  • Package: 4-SMD (0.175", 4.45mm)
  • Voltage Input: 1.14VDC
  • RoHS Compliant: yes
  • Operating Temperature: -40°C to 85°C
