Same model may have multiple batches, images only for reference.

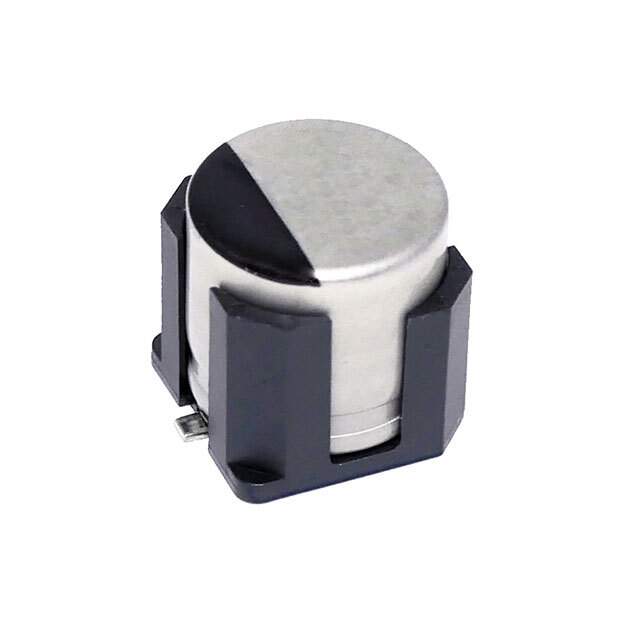

EEH-ZC1H121V Real Image
Same model may have multiple batches, images only for reference.

EEH-ZC1H121V

Part No EEH-ZC1H121V
Manufacturer Panasonic
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 120UF 20% 50V SMD / 120 µF 50 V Aluminum - Polymer Capacitors Radial, Can - SMD 28mOhm 4000 Hrs @ 125°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum - Polymer Capacitors
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Type Hybrid
Capacitance 120 µF
Tolerance ±20%
Voltage - Rated 50 V
ESR (Equivalent Series Resistance) 28mOhm
Lifetime @ Temp. 4000 Hrs @ 125°C
Temperature Range - Operating -55°C ~ 125°C
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 240 mA @ 100 Hz
Ripple Current @ High Frequency 1.6 A @ 100 kHz
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.413" (10.50mm)
Surface Mount Land Size 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Surface Mount
Case / Package Radial, Can - SMD
Base Product Number EEH-ZC
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Part Number P19838TR,P19838CT,EEHZC1H121V,P19838DKR
Standard Package 500
Win Source Part Number 1330383-EEH-ZC1H121V
Ultra Librarian 3D Model Ultra Librarian EEH-ZC1H121V CAD Model

Description

The EEH-ZC1H121V is an aluminum-polymer capacitor that is part of the EEH-ZC series by Panasonic Electronic Components.

  • Capacitance: 120 μF
  • Voltage Rating: 50V
  • Tolerance: ±20%
  • ESR: 28mOhm
  • Type: Hybrid
  • Package: Radial, Can - SMD
  • AEC-Q200 Rated: Yes
  • Lifetime: 4000 hours @ 125°C
  • Application: Automotive
