Same model may have multiple batches, images only for reference.

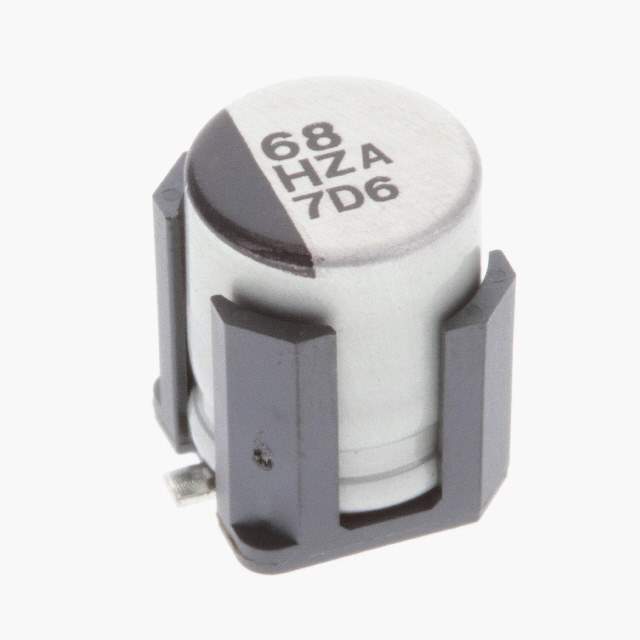

EEH-ZA1J330V Real Image
Same model may have multiple batches, images only for reference.

EEH-ZA1J330V

Part No EEH-ZA1J330V
Manufacturer Panasonic
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 33UF 20% 63V SMD / 33 µF 63 V Aluminum - Polymer Capacitors Radial, Can - SMD 40mOhm 10000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum - Polymer Capacitors
Mfr Panasonic Electronic Components
Series ZA, Anti-Vibration
Package Tape & Reel
Type Hybrid
Capacitance 33 µF
Tolerance ±20%
Voltage - Rated 63 V
ESR (Equivalent Series Resistance) 40mOhm
Lifetime @ Temp. 10000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 255 mA @ 100 Hz
Ripple Current @ High Frequency 1.7 A @ 100 kHz
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.413" (10.50mm)
Surface Mount Land Size 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Base Product Number EEH-ZA
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1339263-EEH-ZA1J330V
Ultra Librarian 3D Model Ultra Librarian EEH-ZA1J330V CAD Model

Description

The Panasonic Electronic Components EEH-ZA1J330V is a hybrid type aluminum polymer capacitor with a capacitance of 33 µF and a voltage rating of 63 V.

  • Manufacturer: Panasonic Electronic Components
  • Product Name: EEH-ZA1J330V
  • Type: Hybrid Aluminum Polymer Capacitor
  • Series: ZA, Anti-Vibration
  • Application: Automotive
  • Capacitance: 33 µF
  • Voltage Rating: 63 V
  • Mounting Type: Surface Mount
  • Standard Package: 500
  • Tolerance: ±20%
  • ESR: 40mOhm
  • Lifetime @ Temperature: 10000 hours @ 105°C
  • Ripple Current (Low Frequency): 255 mA @ 100 Hz
  • Ripple Current (High Frequency): 1.7 A @ 100 kHz
  • Surface Mount Land Size: 0.327" L x 0.327" W (8.30mm x 8.30mm)
  • Operating Temperature Range: -55°C to 105°C
