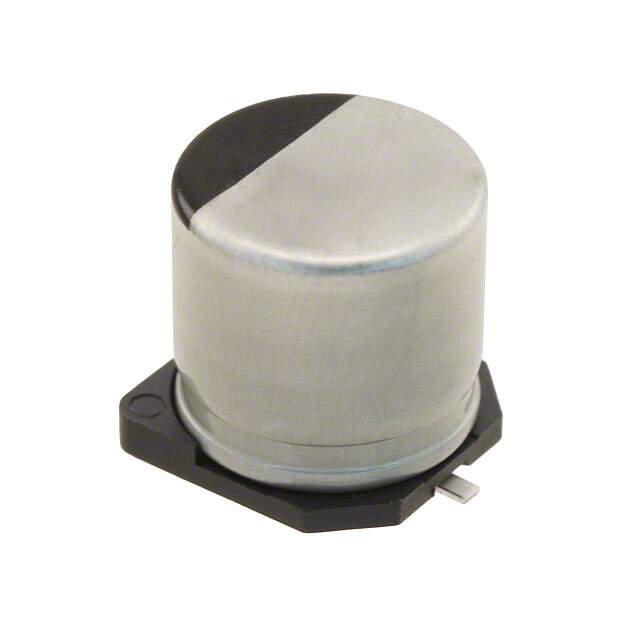

EEH-ZA1H100R Real Image
Same model may have multiple batches, images only for reference.

EEH-ZA1H100R

Part No EEH-ZA1H100R
Manufacturer Panasonic
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY HYB 10UF 50V SMD / 10 µF 50 V Aluminum - Polymer Capacitors Radial, Can - SMD 120mOhm 10000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum - Polymer Capacitors
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Type Hybrid
Capacitance 10 µF
Tolerance ±20%
Voltage - Rated 50 V
ESR (Equivalent Series Resistance) 120mOhm
Lifetime @ Temp. 10000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 75 mA @ 100 Hz
Ripple Current @ High Frequency 750 mA @ 100 kHz
Size / Dimension 0.197" Dia (5.00mm)
Height - Seated (Max) 0.240" (6.10mm)
Surface Mount Land Size 0.209" L x 0.209" W (5.30mm x 5.30mm)
Mounting Surface Mount
Case / Package Radial, Can - SMD
Base Product Number EEH-ZA
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Part Number P15441CT-ND,10-EEH-ZA1H100RTR,10-EEH-ZA1H100RCT,P15441DKR-ND,P15441DKR,P15441CT,P15441TR-ND,P15441TR,10-EEH-ZA1H100RDKR,EEHZA1H100R
Standard Package 1,000
Win Source Part Number 1331072-EEH-ZA1H100R
Ultra Librarian 3D Model Ultra Librarian EEH-ZA1H100R CAD Model

Description

The Panasonic Electronic Components EEH-ZA1H100R is an aluminum-polymer capacitor designed for automotive applications.

  • Application: Automotive
  • Capacitance: 10 µF
  • Voltage Rating: 50 V
  • Standard Package: 1,000
  • Mounting Type: Surface Mount
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8532.22.0020
