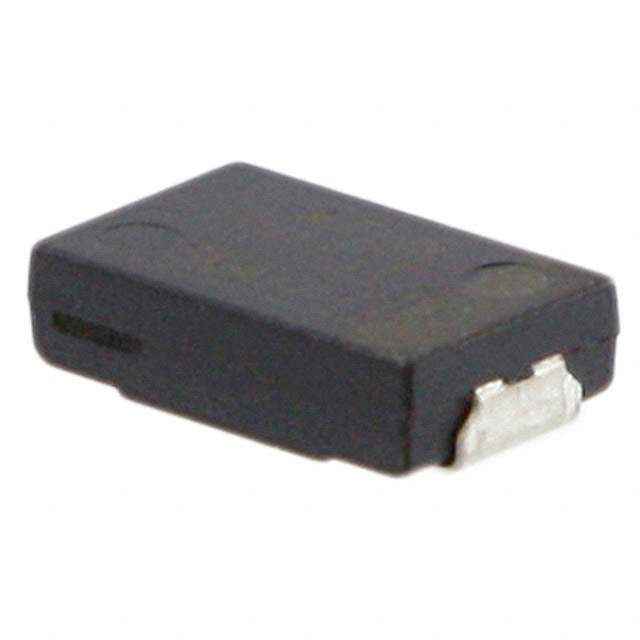

The Panasonic EEFGX0D471R is an aluminum electrolytic capacitor with a conductive polymer electrolyte. This capacitor features low ESR (Equivalent Series Resistance), which makes it highly efficient in handling ripple currents and ensuring stable performance in demanding applications. It is designed for surface mount technology, allowing for automated assembly and compact circuit layouts.

Applications

• DC-DC Converters
• Voltage Regulators
• Power Supplies
• Motherboards
• Graphics Cards
• Solid State Drives (SSDs)
• Notebook PCs
• Digital Appliances

Features

• Low ESR: Reduces power loss and heat generation, improving efficiency.
• High Ripple Current Capability: Provides stable performance under high-frequency and high-current conditions.
• Long Life: Offers an extended operational lifespan, enhancing system reliability.
• Surface Mount Technology (SMT): Designed for automated assembly processes.
• Stable Performance: Maintains consistent electrical characteristics over a wide temperature range.
• RoHS Compliant: Free from hazardous substances, meeting environmental regulations.

Benefits

• Improved Power Efficiency: Minimizes energy waste in power circuits.
• Enhanced System Reliability: Offers stable and dependable performance in demanding conditions.
• Reduced Heat Generation: Lowers thermal stress on surrounding components.
• Compact Design: SMT design allows for smaller and more efficient circuit layouts.
• Optimized Performance: Enables stable operation under high ripple current conditions.

Technical Specifications

While the precise specifications can be found in the Panasonic datasheet for the EEFGX0D471R, typical characteristics include:

• Capacitance: 470µF
• Voltage Rating: 4V
• ESR: Very Low ESR (consult datasheet for specific value)
• Operating Temperature: Typically -55°C to +105°C

For detailed and accurate specifications, always refer to the official Panasonic datasheet for the EEFGX0D471R.
