Same model may have multiple batches, images only for reference.

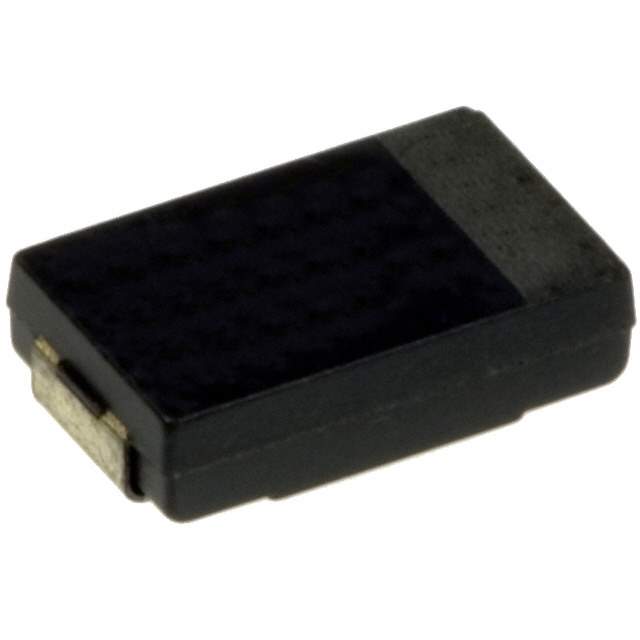

EEF-SX0E391E4 Real Image
Same model may have multiple batches, images only for reference.

EEF-SX0E391E4

Part No EEF-SX0E391E4
Manufacturer Panasonic
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 390UF 20% 2.5V SMD / 390 µF 2.5 V Aluminum - Polymer Capacitors 2917 (7343 Metric) 4.5mOhm 2000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum - Polymer Capacitors
Mfr Panasonic Electronic Components
Series SP-Cap SX
Package Tape & Reel
Type Polymer
Capacitance 390 µF
Tolerance ±20%
Voltage - Rated 2.5 V
ESR (Equivalent Series Resistance) 4.5mOhm
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Applications General Purpose
Ripple Current @ High Frequency 8.5 A @ 100 kHz
Size / Dimension 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) 0.079" (2.00mm)
Surface Mount Land Size 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting Type Surface Mount
Package / Case 2917 (7343 Metric)
Base Product Number EEF-SX
Standard Package 3,500
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1350396-EEF-SX0E391E4
Ultra Librarian 3D Model Ultra Librarian EEF-SX0E391E4 CAD Model

Description

The SP-Cap SX series capacitor is a polymer type capacitor with a capacitance of 390 µF and a voltage rating of 2.5 V.

  • Capacitance: 390 µF
  • Voltage Rating: 2.5 V
  • Tolerance: ±20%
  • ESR: 4.5mOhm
  • Package: Tape & reel
  • Size: 0.287" L x 0.169" W (7.30mm x 4.30mm)
  • Height when seated: 0.079" (2.00mm)
  • Applications: General purposes
  • Lifetime: 2000 Hrs @ 105°C
  • Mounting Type: Surface mount
  • Surface Mount Land Size: 0.287" L x 0.169" W (7.30mm x 4.30mm)
  • Operating Temperature: -55°C to 105°C
  • Manufacturer: Panasonic Electronic Components
  • Base Product Number: EEF-SX
  • Ripple Current @ High Frequency: 8.5 A @ 100 kHz
