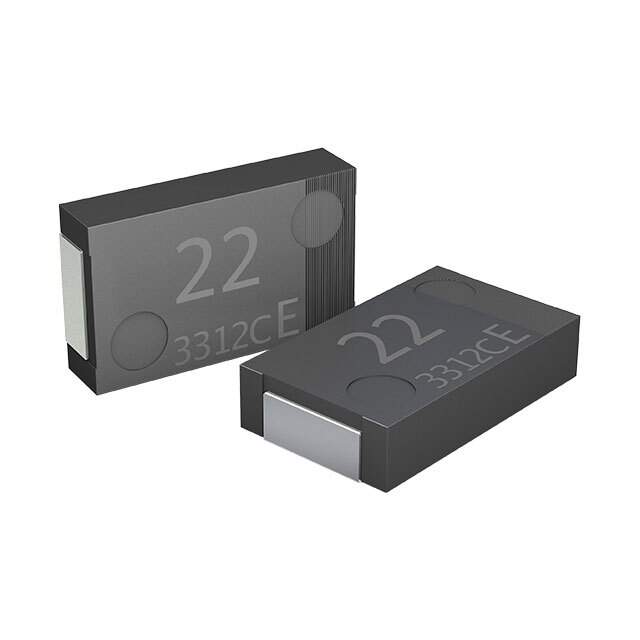

Products specifications

Categories Capacitors
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Active
Type Polymer
Capacitance 220μF
Tolerance ±20%
Voltage Rating 2V
ESR 4.5 mOhm
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C to 105°C
Applications General Purpose
Ripple Current - High Frequency 8.5A @ 100kHz
Height - Seated (Max) 0.039" (1.00mm)
Mounting SMD (SMT)
Dimension 2917 (7343 Metric)
Win Source Part Number 1003152-EEF-SR0D221R4
Popularity Medium
Supply and Demand Status Balance
Application Field Used in System Monitoring
Ultra Librarian 3D Model Ultra Librarian EEF-SR0D221R4 CAD Model

Description

The Panasonic Electronic Components 1003152-EEF-SR0D221R4 is a medium-popularity electronic component used for general purpose applications.

  • Manufacturer: Panasonic Electronic Components
  • Component Type: Polymer Capacitor
  • Voltage Rating: 2V
  • Capacitance: 220μF
  • ESR: 4.5 mOhm
  • Ripple Current: 8.5A @ 100kHz
  • Surface Mount Land Size: Not specified
  • Supply and Demand Status: Balanced
  • Recommended Use: System monitoring
