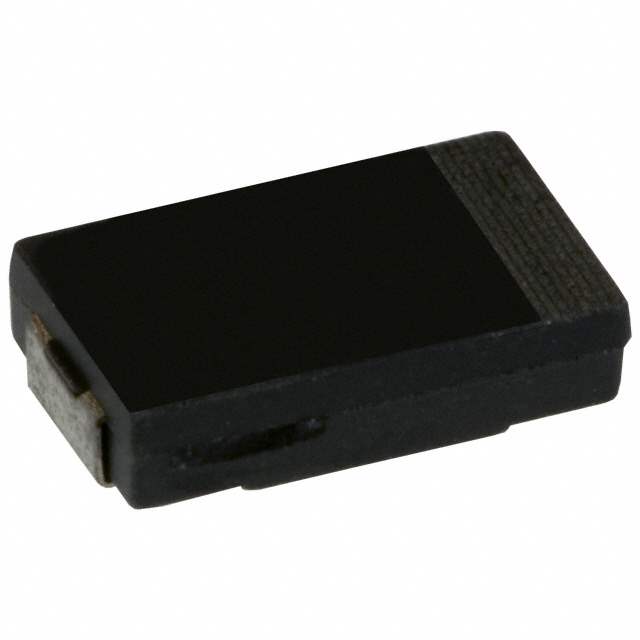

Same model may have multiple batches, images only for reference.

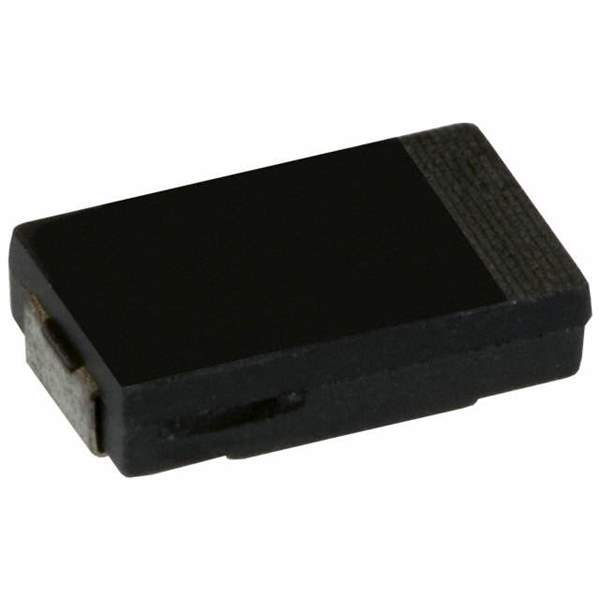

EEF-CD0D221ER Real Image
Same model may have multiple batches, images only for reference.

EEF-CD0D221ER

Part No EEF-CD0D221ER
Manufacturer Panasonic
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 220UF 20% 2V SMD
Datasheet
EEF-CD0D221ER Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Active
Type Polymer
Capacitance 220μF
Tolerance ±20%
Voltage Rating 2V
ESR 18 mOhm
Lifetime @ Temp. 1000 Hrs @ 105°C
Temperature Range - Operating -40°C to 105°C
Applications General Purpose
Ripple Current - High Frequency 2.5A @ 100kHz
Height - Seated (Max) 0.071" (1.80mm)
Surface Mount Land Size 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting SMD (SMT)
Dimension 2917 (7343 Metric)
Win Source Part Number 136163-EEF-CD0D221ER
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian EEF-CD0D221ER CAD Model

Description

EEF-CD0D221ER - Premium Electrolytic Capacitor

The EEF-CD0D221ER offers excellent stability and efficiency, making it a preferred choice for various electronic projects. This capacitor is designed to handle demanding applications, ensuring long-term reliability.

  • Applications:
    • Switched-mode power supplies
    • Voltage regulation circuits
    • LED drivers
    • Microcontroller power units
  • Features and Benefits:
    • High ripple current capability
    • Excellent load life
    • Compact design for easy integration into circuit boards
    • Wide operating temperature range
  • Additional Details:
    • Capacitance: 220μF
    • Voltage Rating: 16V
    • Temperature Range: -40°C to +105°C
