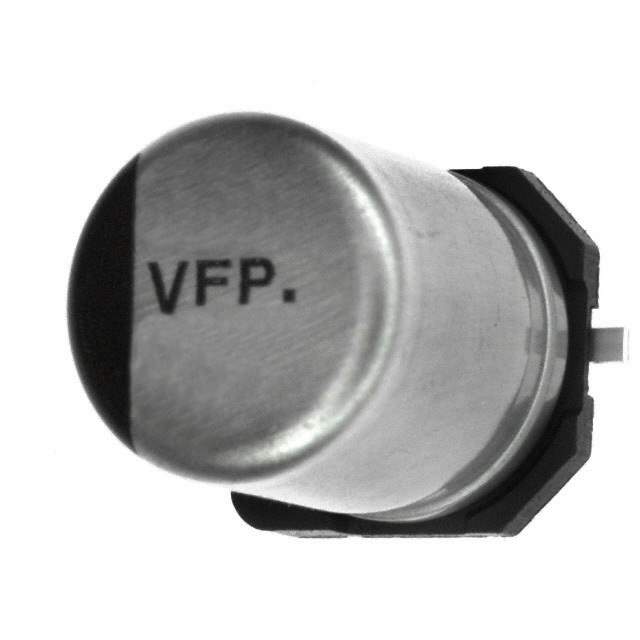

The EEEFPV101XAP is a surface mount aluminum electrolytic capacitor belonging to Panasonic's FP series. This series is characterized by its exceptionally low ESR (Equivalent Series Resistance), allowing for higher ripple current capability and improved performance in demanding applications. It's well-suited for use in various electronic devices where efficiency and reliability are paramount.

Applications

• Switching power supplies
• DC-DC converters
• Noise filtering circuits
• Voltage regulators
• Inverters
• High-frequency circuits
• Motherboards

Features

• Ultra-Low ESR: Minimizes energy loss and heat generation.
• High Ripple Current Capability: Enables stable operation under high current loads.
• Surface Mount Technology (SMT): Facilitates automated assembly processes.
• Long Life: Provides extended operational lifespan, reducing maintenance requirements.
• Compact Size: Allows for space-saving design in electronic devices.
• RoHS Compliant: Adheres to environmental regulations regarding hazardous substances.

Benefits

• Improved Efficiency: Reduces energy loss, leading to better overall system performance.
• Enhanced Reliability: Ensures stable operation even under demanding conditions.
• Reduced Heat Generation: Minimizes thermal stress on surrounding components.
• Extended Component Lifespan: Lowers the frequency of replacements and reduces maintenance costs.
• Smaller Device Footprint: Enables miniaturization of electronic devices.

Technical Specifications

The EEEFPV101XAP has a capacitance of 100μF and a voltage rating of 35VDC. Its ultra-low ESR value is a key characteristic, typically in the milliohm range. The capacitor is designed for operation within a temperature range of -55°C to +105°C. Its dimensions are optimized for surface mount assembly. Refer to the official Panasonic datasheet for the FP series for precise measurements and further technical details.

This capacitor is an excellent choice for applications requiring high performance and reliability. The low ESR characteristic makes it particularly suitable for use in switching power supplies and DC-DC converters, where it contributes to increased efficiency and reduced heat generation. Its compact size and surface mount design make it ideal for modern electronic devices with stringent space requirements. The EEEFPV101XAP is a valuable component for engineers seeking to optimize the performance and reliability of their electronic designs.
