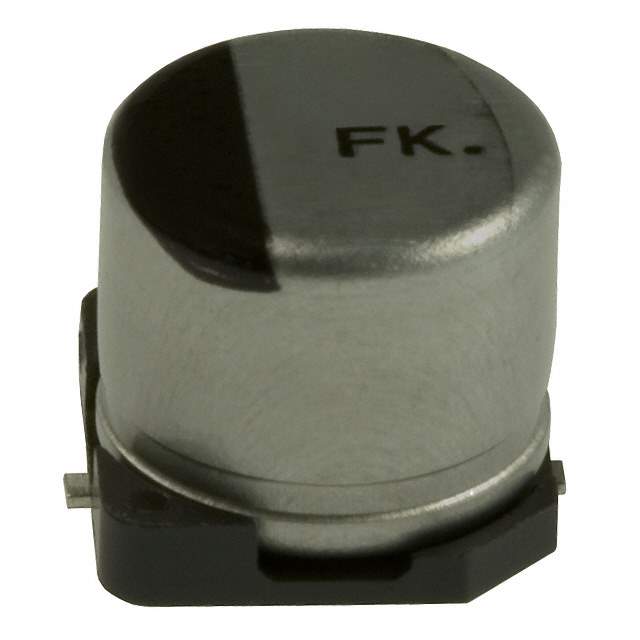

The EEEFK1A151P is an aluminum electrolytic capacitor manufactured by Panasonic. It belongs to the FK series, which is known for its long life and high reliability. This capacitor is designed for general-purpose applications requiring stable performance and extended operational lifespan.

Applications

• Power supply smoothing
• Audio equipment
• Industrial control systems
• General electronic circuits
• DC-DC converters

Features

• Capacitance: 150µF
• Voltage Rating: 10V
• Operating Temperature Range: -40°C to +85°C
• Endurance: 5000 hours at 85°C
• Low ESR (Equivalent Series Resistance)
• RoHS Compliant

Benefits

• Extended operational life ensures long-term reliability.
• Effective filtering and smoothing due to its capacitance value.
• Low ESR improves performance in high-frequency circuits.
• Suitable for use in various environmental conditions.
• Environmentally friendly due to RoHS compliance.

Additional Details

The EEEFK1A151P is an aluminum electrolytic capacitor with a radial lead configuration for easy PCB mounting. It has a cylindrical shape and is typically about 6.3mm in diameter and 11mm in height. Its ripple current rating indicates its ability to handle AC current superimposed on the DC voltage without significant heating or degradation. The low ESR contributes to reduced power dissipation and improved efficiency. This capacitor is commonly used to stabilize voltage levels, reduce noise, and store energy in a variety of electronic applications. It is designed to meet stringent quality standards and provide consistent performance. The aluminum case offers protection against environmental factors and facilitates heat dissipation. The part is available in various packaging options, including bulk and tape-and-reel, for automated assembly processes. The electrolyte used within the capacitor is carefully selected to ensure long life and stable electrical characteristics. The capacitor is designed to withstand surge voltages, providing additional protection against transient events. The component's construction minimizes inductance, improving its performance in high-frequency applications. The capacitor’s long life makes it suitable for applications where maintenance is difficult or costly.
