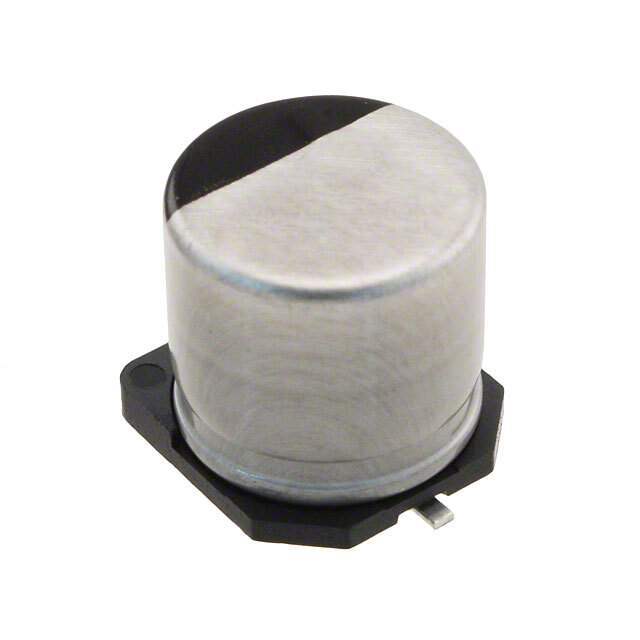

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number WS1307496-EEE-TP1K511M
Category Capacitors Aluminum Electrolytic Capacitors
Mfr Panasonic Electronic Components
Packaging Tape & Reel (TR) Cut Tape (CT)
Part Status Active
Capacitance 510 µF
Tolerance ±20%
Voltage - Rated 80 V
ESR (Equivalent Series Resistance) 95mOhm @ 100kHz
Lifetime @ Temp. 3000 Hrs @ 125°C
Operating Temperature -55°C ~ 125°C
Ultra Librarian 3D Model Ultra Librarian EEE-TP1K511M CAD Model

Description

  • Endurance : 125 ℃ 3000 to 4000 h
  • High ripple current (2 to 5 times as high as TK series)
  • Low ESR (40 to 70 % lower than TK series)
  • Large capacitance (Up to 80 % larger than TK series)
  • Vibration-proof product (30G guaranteed) is available upon request
  • AEC-Q200 compliant
  • RoHS compliant
