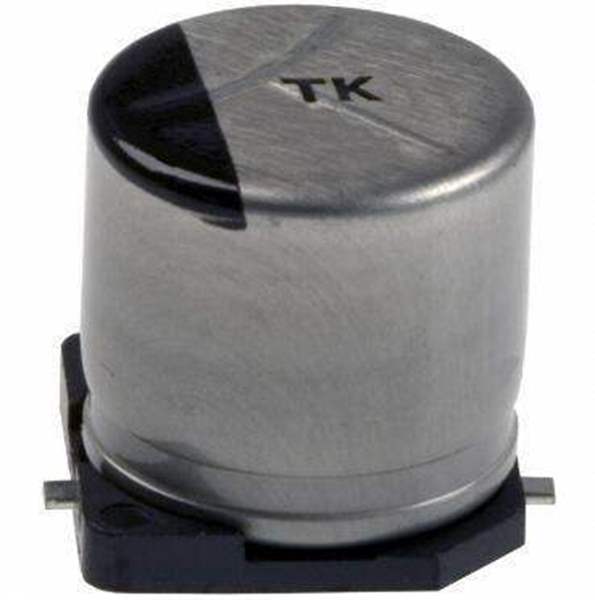

Same model may have multiple batches, images only for reference.

EEE-TK1H221AQ

Name: EEE-TK1H221AQ
Brand: Panasonic
SKU: WS1307545
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	EEE-TK1H221AQ
Manufacturer	Panasonic
Catalog	Aluminum Capacitors
Description	CAP ALUM 220UF 20% 50V SMD
Datasheet	EEE-TK1H221AQ Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Panasonic Electronic Components
Category	Capacitors Aluminum Electrolytic Capacitors
Part Status	Active
Tolerance	±20%
Voltage - Rated	50 V
ESR (Equivalent Series Resistance)	230mOhm @ 100kHz
Lifetime @ Temp.	2000 Hrs @ 125°C
Operating Temperature	-40°C ~ 125°C
Ripple Current @ Low Frequency	450 mA @ 120 Hz
Ripple Current @ High Frequency	600 mA @ 100 kHz
Size / Dimension	0.492" Dia (12.50mm)
Height - Seated (Max)	0.531" (13.50mm)
Surface Mount Land Size	0.531" L x 0.531" W (13.50mm x 13.50mm)
Win Source Part Number	WS1307545-EEE-TK1H221AQ
Ultra Librarian 3D Model	Ultra Librarian EEE-TK1H221AQ CAD Model

Description

220 µF 50 V Aluminum Electrolytic Capacitors Radial, Can - SMD 230mOhm @ 100kHz 2000 Hrs @ 125°C
