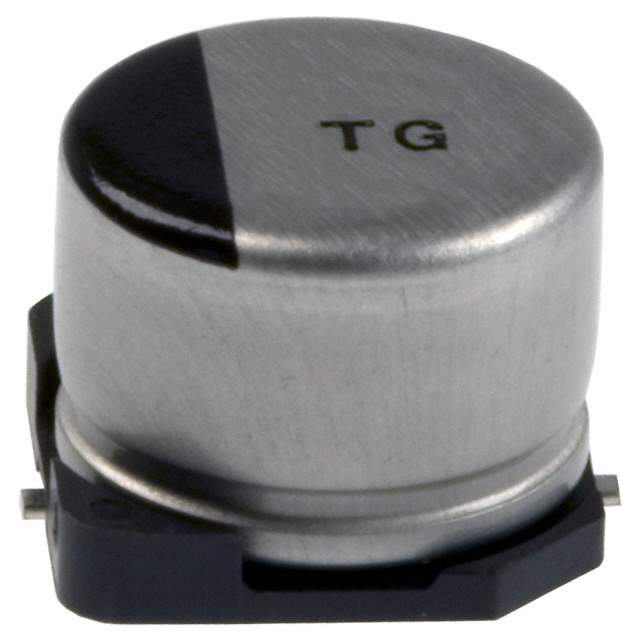

EEE-TG1H330UP Real Image
Same model may have multiple batches, images only for reference.

EEE-TG1H330UP

Part No EEE-TG1H330UP
Manufacturer Panasonic
Catalog Aluminum Capacitors
Description CAP ALUM 33UF 20% 50V SMD / 33 µF 50 V Aluminum Electrolytic Capacitors Radial, Can - SMD 1.6Ohm @ 100kHz 1000 Hrs @ 125°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Panasonic Electronic Components
Series TG
Package Tape & Reel
Capacitance 33 µF
Tolerance ±20%
Voltage - Rated 50 V
ESR (Equivalent Series Resistance) 1.6Ohm @ 100kHz
Lifetime @ Temp. 1000 Hrs @ 125°C
Temperature Range - Operating -40°C ~ 125°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 52 mA @ 120 Hz
Ripple Current @ High Frequency 80 mA @ 100 kHz
Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.244" (6.20mm)
Surface Mount Land Size 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting SMD (SMT)
Package / Case Radial, Can - SMD
Base Product Number EEE-TG
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names EEETG1H330UP,Q4460920,PCE4077TR,PCE4077DKR,PCE4077CT
Standard Package 1,000
Win Source Part Number 1056868-EEE-TG1H330UP
Ultra Librarian 3D Model Ultra Librarian EEE-TG1H330UP CAD Model

Description

Panasonic Electronic Components' EEE-TG1H330UP is a 33 µF aluminum electrolytic capacitor that belongs to the TG series.

  • Capacitance: 33 µF
  • Series: TG
  • Capacitance Tolerance: ±20%
  • Rated Voltage: 50 V
  • Ripple Current: 52 mA @ 120 Hz (low frequency) and 80 mA @ 100 kHz (high frequency)
  • AEC-Q200 Rated: Yes
  • Suitable for: Automotive applications
  • Height: 0.244" (6.20mm)
  • Dimension: 0.315" Dia (8.00mm)
  • REACH: Unaffected
  • ECCN: EAR99
