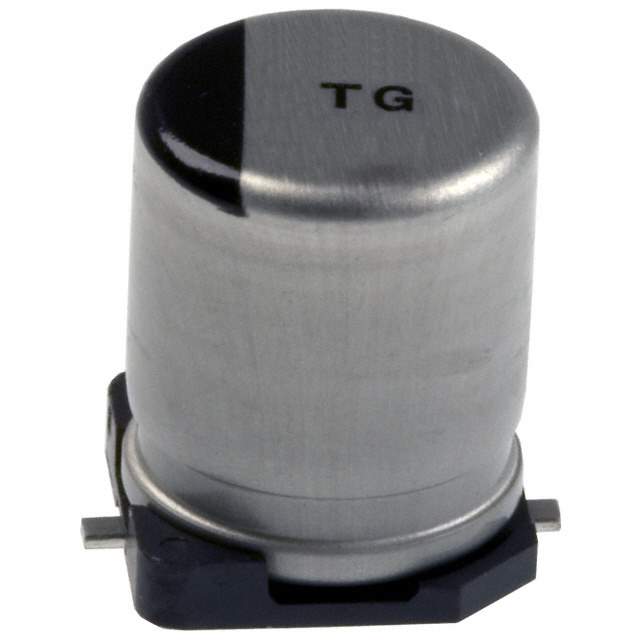

EEE-TG1C222M

Name: EEE-TG1C222M
Brand: Panasonic
SKU: 763531
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	EEE-TG1C222M
Manufacturer	Panasonic
Catalog	Aluminum Capacitors
Description	CAP ALUM 2200UF 20% 16V SMD
Datasheet	EEE-TG1C222M Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Capacitors
Manufacturer	Panasonic Electronic Components
Series	Automotive, AEC-Q200, TG
Part Status	Obsolete(EOL)
Capacitance	2200μF
Tolerance	±20%
Voltage Rating	16V
ESR (Equivalent Series Resistance)	75 mOhm @ 100kHz
Lifetime @ Temp.	2000 Hrs @ 125°C
Operating Temperature Range	-40°C ~ 125°C
Polarization	Polar
Applications	General
Ripple Current - Low Frequency	845mA @ 120Hz
Dimension	0.709" Dia (18.00mm)
Height - Seated (Maximum)	0.650" (16.50mm)
Surface Mount Land Size	0.748" L x 0.748" W (19.00mm x 19.00mm)
Mounting	SMD
Package	Radial, Can - SMD
Win Source Part Number	763531-EEE-TG1C222M
Popularity	Medium
Supply and Demand Status	Limited
Family Name	TG
Introduction Date	July 04, 2004
Country of Origin	Japan
Estimated EOL Date	2026
Ultra Librarian 3D Model	Ultra Librarian EEE-TG1C222M CAD Model

Description

The Panasonic Electronic Components capacitor with a voltage rating of 16V is designed for general applications.

Series: TG
Capacitance: 2200μF
Tolerance: ±20%
ESR: 75 mOhm @ 100kHz
Lifetime: 2000 hours @ 125°C
Surface Mount Land Size: 0.748" L x 0.748" W (19.00mm x 19.00mm)
Polarization: Polar
Mounting Type: SMD
Package: Radial, Can - SMD
Height: 0.650" (16.50mm)
Ripple Current: 845mA @ 120Hz
Status: Obsolete (EOL)
Category: Capacitor
Popularity: Medium
