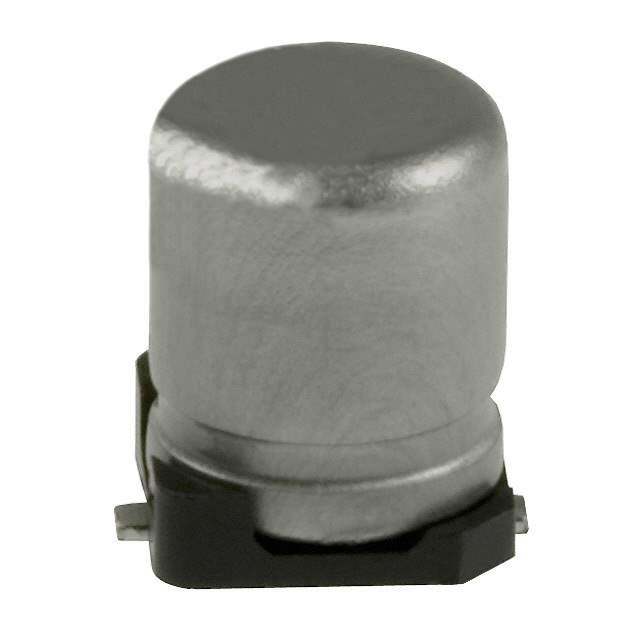

EEE-HP1H4R7P Real Image
Same model may have multiple batches, images only for reference.

EEE-HP1H4R7P

Part No EEE-HP1H4R7P
Manufacturer Panasonic
Catalog Aluminum Capacitors
Description CAP ALUM 4.7UF 20% 50V SMD / 4.7 µF 50 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Capacitance 4.7 µF
Tolerance ±20%
Voltage - Rated 50 V
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Bi-Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 23 mA @ 120 Hz
Ripple Current @ High Frequency 39.1 mA @ 10 kHz
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.240" (6.10mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Surface Mount
Case / Package Radial, Can - SMD
Base Product Number EEE-HP
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Part Number 10-EEE-HP1H4R7PTR,EEE-HP1H4R7P-ND,10-EEE-HP1H4R7PCT,EEEHP1H4R7P,10-EEE-HP1H4R7PDKR
Standard Package 1,000
Win Source Part Number 1330087-EEE-HP1H4R7P
Ultra Librarian 3D Model Ultra Librarian EEE-HP1H4R7P CAD Model

Description

The Panasonic Electronic Components capacitor is a bi-polar surface mount aluminum electrolytic capacitor that has a capacitance of 4.7 µF and is rated for 50 V.

  • Tolerance: ±20%
  • AEC-Q200: Rated
  • Series: EEE-HP
  • Ripple Current: 23 mA @ 120 Hz and 39.1 mA @ 10 kHz
  • Lifetime: 2000 hours @ 105°C
  • Application: Automotive
  • Packaging: Reel
  • Standard Package: 1000
  • Surface Mount Land Size: 0.260” L x 0.260” W (6.60mm x 6.60mm)
  • Height: 0.240” (6.10mm)
  • Model: EEE-HP1H4R7P
  • RoHS Compliant: Yes
  • ECCN: EAR99
