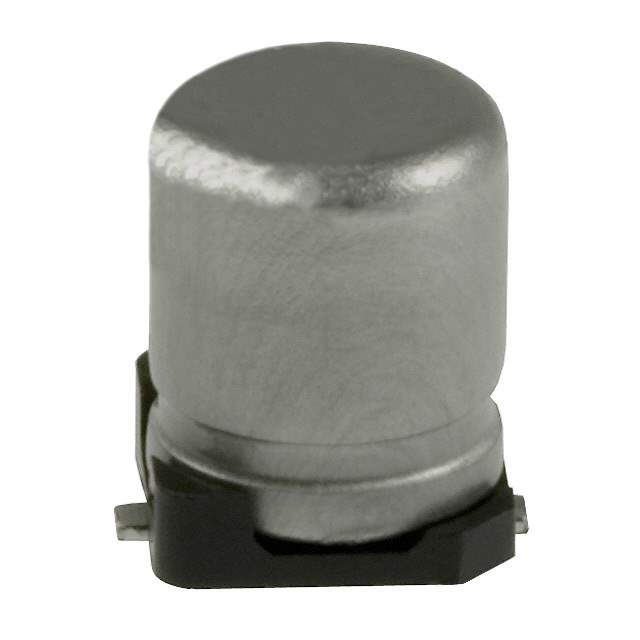

EEE-HP1E220P Real Image
Same model may have multiple batches, images only for reference.

EEE-HP1E220P

Part No EEE-HP1E220P
Manufacturer Panasonic
Catalog Aluminum Capacitors
Description CAP ALUM 22UF 20% 25V SMD / 22 µF 25 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Capacitance 22 µF
Tolerance ±20%
Voltage - Rated 25 V
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Bi-Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 55 mA @ 120 Hz
Ripple Current @ High Frequency 93.5 mA @ 10 kHz
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.240" (6.10mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Surface Mount
Case / Package Radial, Can - SMD
Base Product Number EEE-HP
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Part Number EEEHP1E220P
Standard Package 1,000
Win Source Part Number 1330080-EEE-HP1E220P
Ultra Librarian 3D Model Ultra Librarian EEE-HP1E220P CAD Model

Description

The Panasonic Electronic Components EEE-HP1E220P is an aluminum electrolytic capacitor with a capacitance of 22µF and a voltage rating of 25V.

  • Tolerance: ±20%
  • Application: Automotive
  • Case: Radial can - SMD
  • Height: 0.240" (6.10mm) when seated
  • Surface Mount Land Size: 0.260" L x 0.260" W (6.60mm x 6.60mm)
  • Ripple Current: 55 mA @ 120 Hz and 93.5 mA @ 10 kHz
  • Lifetime: 2000 hours @ 105°C
  • AEC-Q200 Rated: Yes
  • RoHS Compliant: Yes
  • ECCN: EAR99
