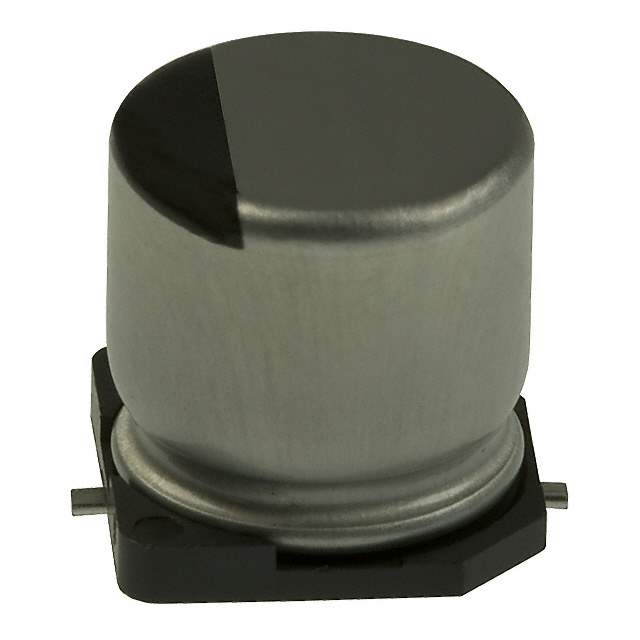

EEE-HA1H101UP Real Image
Same model may have multiple batches, images only for reference.

EEE-HA1H101UP

Part No EEE-HA1H101UP
Manufacturer Panasonic
Catalog Aluminum Capacitors
Description CAP ALUM 100UF 20% 50V SMD / 100 µF 50 V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Product Status Not For New Designs
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 50 V
Lifetime @ Temp. 1000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 110 mA @ 120 Hz
Ripple Current @ High Frequency 187 mA @ 10 kHz
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.402" (10.20mm)
Surface Mount Land Size 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Surface Mount
Case / Package Radial, Can - SMD
Base Product Number EEE-HA
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Part Number PCE4211CT,PCE4211DKR,Q6118177,EEEHA1H101UP,PCE4211TR
Standard Package 500
Win Source Part Number 1330086-EEE-HA1H101UP
Ultra Librarian 3D Model Ultra Librarian EEE-HA1H101UP CAD Model

Description

The EEE-HA1H101UP is an aluminum electrolytic capacitor from Panasonic Electronic Components.

  • Application: Automotive
  • Package: Radial, can - SMD
  • Standard Package: 500
  • ECCN: EAR99 compliant
  • Capacitance: 100 µF
  • Voltage Rating: 50 V
  • Ripple Current: 110 mA @ 120 Hz and 187 mA @ 10 kHz
