Same model may have multiple batches, images only for reference.

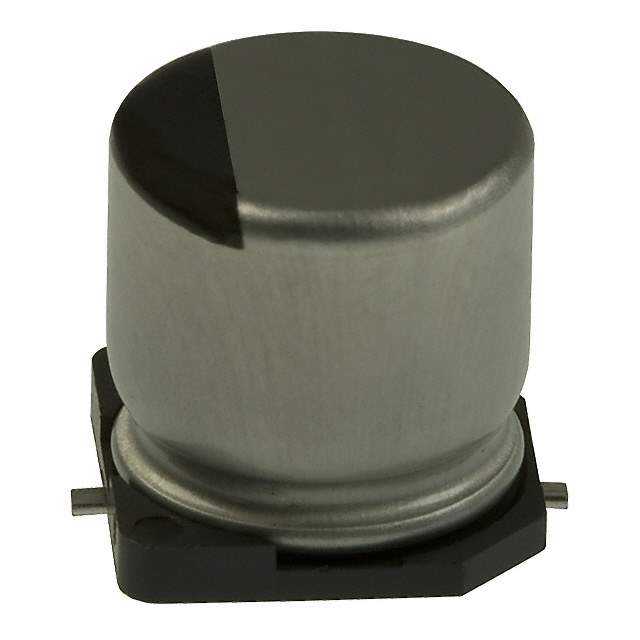

EEE-HA1E221UP Real Image
Same model may have multiple batches, images only for reference.

EEE-HA1E221UP

Part No EEE-HA1E221UP
Manufacturer Panasonic
Catalog Aluminum Capacitors
Description CAP ALUM 220UF 20% 25V SMD
Datasheet
EEE-HA1E221UP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Series HA
Capacitance 220μF
Tolerance ±20%
Voltage Rating 25V
Lifetime @ Temp. 1000 Hrs @ 105°C
Operating Temperature Range -40°C ~ 105°C
Polarization Polar
Applications Automotive
Ripple Current - Low Frequency 160mA @ 120Hz
Ripple Current - High Frequency 272mA @ 10kHz
Dimension 0.315" Dia (8.00mm)
Height - Seated (Maximum) 0.402" (10.20mm)
Surface Mount Land Size 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting SMD
Package Radial, Can - SMD
Win Source Part Number 763584-EEE-HA1E221UP
Popularity Medium
Supply and Demand Status Limited
Family Name HA
Introduction Date July 04, 2004
ECCN EAR99
Country of Origin Japan, Malaysia
Halogen Free Unknown
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian EEE-HA1E221UP CAD Model

Description

The EEE-HA1E221UP is a 220uF, 25V, polarized, SMD capacitor from Panasonic Electronic Components. It operates in an operating temperature range of -40°C to 105°C and has a lifetime of 1000 hours @ 105°C.

  • Capacitance: 220uF
  • Voltage Rating: 25V
  • Temperature Range: -40°C to 105°C
  • Lifetime: 1000 hours @ 105°C
  • Series: HA
  • Package: Radial, can-SMD
  • Ripple Current @ 120Hz: 160mA
  • Ripple Current @ 10kHz: 272mA
  • Applications: Automotive
  • Alternative Parts: CA025M0220REF-0810, CA025M0220REE-0806, 25REV220M8X10.5
  • Supply and Demand Status: Limited
