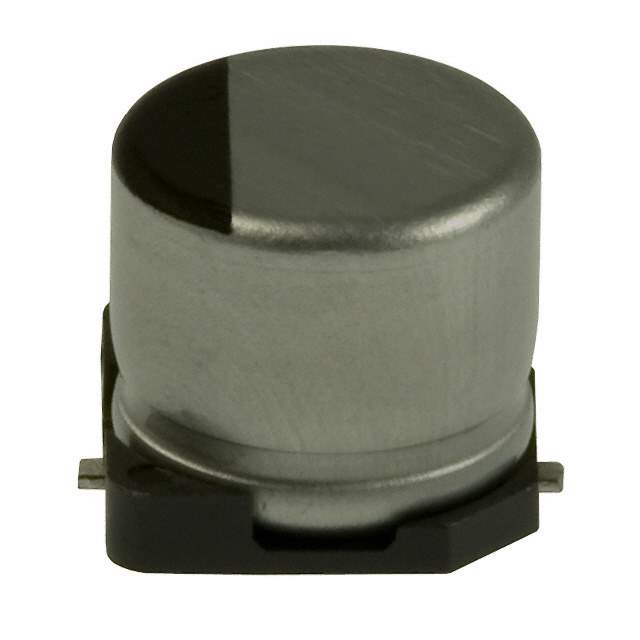

Same model may have multiple batches, images only for reference.

EEE-HA0J220AR

Name: EEE-HA0J220AR
Brand: Panasonic
SKU: 1330059
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	EEE-HA0J220AR
Manufacturer	Panasonic
Catalog	Aluminum Capacitors
Description	CAP ALUM 22UF 20% 6.3V SMD / 22 µF 6.3 V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Manufacturer	Panasonic Electronic Components
Packaging	Reel - TR
Product Status	Not For New Designs
Capacitance	22 µF
Tolerance	±20%
Voltage - Rated	6.3 V
Lifetime @ Temp.	1000 Hrs @ 105°C
Temperature Range - Operating	-40°C ~ 105°C
Polarization	Polar
Ratings	AEC-Q200
Applications	Automotive
Ripple Current @ Low Frequency	29 mA @ 120 Hz
Ripple Current @ High Frequency	49.3 mA @ 10 kHz
Size / Dimension	0.157" Dia (4.00mm)
Height - Seated (Max)	0.213" (5.40mm)
Surface Mount Land Size	0.169" L x 0.169" W (4.30mm x 4.30mm)
Mounting	Surface Mount
Case / Package	Radial, Can - SMD
Base Product Number	EEE-HA
RoHS Status	RoHS Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Other Part Number	PCE4647CT,PCE4647TR,PCE4647DKR,EEEHA0J220AR
Standard Package	2,000
Win Source Part Number	1330059-EEE-HA0J220AR
Ultra Librarian 3D Model	Ultra Librarian EEE-HA0J220AR CAD Model

Description

The EEE-HA0J220AR is an aluminum electrolytic capacitor from Panasonic Electronic Components.

Manufacturer: Panasonic Electronic Components
Product Name: EEE-HA0J220AR
Type: Aluminum Electrolytic Capacitor
Application: Automotive
Capacitance: 22 µF
Voltage Rating: 6.3V
Tolerance: ±20%
Lifetime: 1000 Hrs @ 105°C
Mounting Type: Surface Mount
Packaging: Reel
Size: 0.157" Dia (4.00mm)
Height: 0.213" (5.40mm)
Operating Temperature: -40°C to 105°C
Polarization: Polarized
Case/Package: Radial, Can - SMD
RoHS Compliant: Yes
ECCN: EAR99
