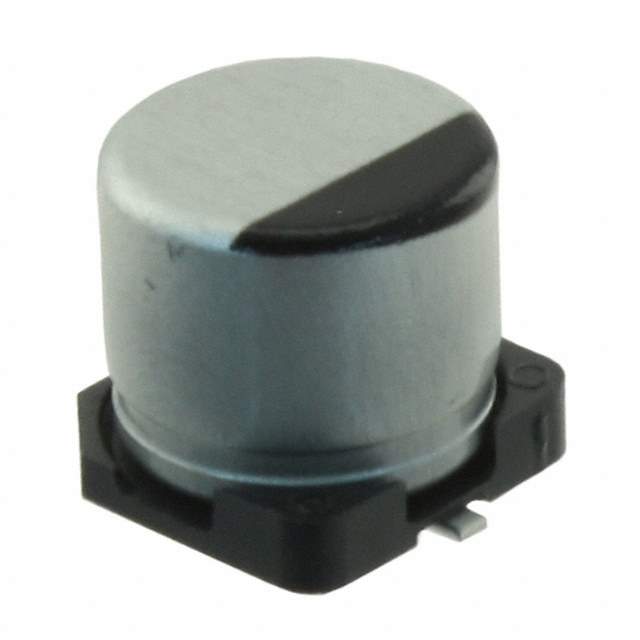

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Panasonic Electronic Components
Series FT
Package Tape & Reel
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 25 V
ESR (Equivalent Series Resistance) 260mOhm @ 100kHz
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 195 mA @ 120 Hz
Ripple Current @ High Frequency 300 mA @ 100 kHz
Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.240" (6.10mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting SMD (SMT)
Package / Case Radial, Can - SMD
Base Product Number EEE-FT
Other Names EEEFT1E101AP,PCE5007TR,PCE5007DKR,PCE5007CT
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1307317-EEE-FT1E101AP
Ultra Librarian 3D Model Ultra Librarian EEE-FT1E101AP CAD Model

Description

The 1307317-EEE-FT1E101AP is an aluminum electrolytic capacitor from Panasonic Electronic Components.

  • Capacitance: 100µF
  • Voltage Rating: 25V
  • Tolerance: ±20%
  • ESR: 260mOhm @ 100kHz
  • Polarized: Yes
  • Package: Radial, Can-SMD
  • Operating Temperature: -55°C to 105°C
  • Lifetime: 2000 hours @ 105°C
  • Ripple Current: 195mA @ 120Hz
  • Ripple Current: 300mA @ 100kHz
  • AEC-Q200 Rated: Yes
  • Packaging: Tape and Reel
