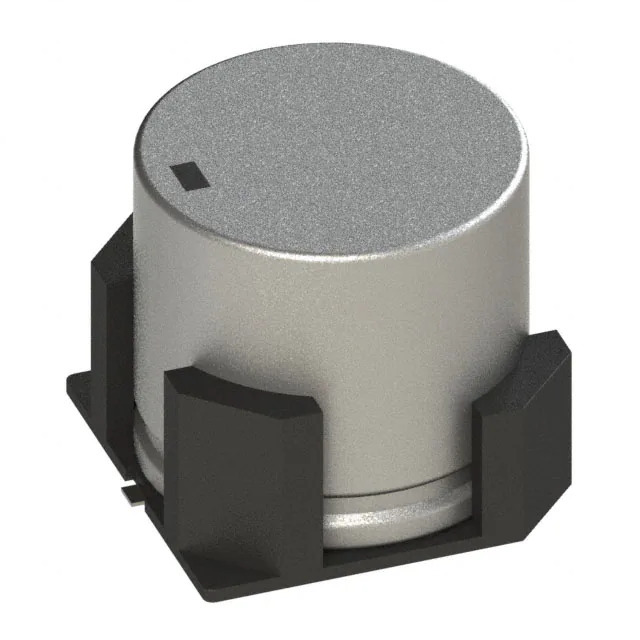

Same model may have multiple batches, images only for reference.

EEE-FK2A331AV

Name: EEE-FK2A331AV
Brand: Panasonic
SKU: 1360353
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	EEE-FK2A331AV
Manufacturer	Panasonic
Catalog	Aluminum Capacitors
Description	CAP ALUM 330UF 20% 100V SMD / 330 µF 100 V Aluminum Electrolytic Capacitors Radial, Can - SMD 153mOhm @ 100kHz 5000 Hrs @ 105°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Panasonic Electronic Components
Series	FK, Anti-Vibration
Package	Tape & Reel
Product Status	Active
Capacitance	330 µF
Tolerance	±20%
Voltage - Rated	100 V
ESR (Equivalent Series Resistance)	153mOhm @ 100kHz
Lifetime @ Temp.	5000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Ratings	AEC-Q200
Applications	Automotive, High Temperature Reflow
Ripple Current @ Low Frequency	687.75 mA @ 120 Hz
Ripple Current @ High Frequency	917 mA @ 100 kHz
Lead Spacing	-
Size / Dimension	0.709" Dia (18.00mm)
Height - Seated (Max)	0.673" (17.10mm)
Surface Mount Land Size	0.748" L x 0.748" W (19.00mm x 19.00mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
Base Product Number	EEE-FK
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1360353-EEE-FK2A331AV
Ultra Librarian 3D Model	Ultra Librarian EEE-FK2A331AV CAD Model

Description

The FK series aluminum electrolytic capacitors from Panasonic Electronic Components are designed for high-performance automotive applications.

Capacitance: 330μF
Voltage Rating: 100V
ESR @ 100kHz: 153mOhm
Lifetime @ 105°C: 5000 hours
AEC-Q200: Rated
Mounting Type: Surface Mount
Package: Radial, Can - SMD
Anti-Vibration: Yes
Dimensions: 0.709" Dia (18.00mm)
Height: 0.673" (17.10mm)
REACH: Unaffected
ECCN: EAR99
Polarization: Polar
