Same model may have multiple batches, images only for reference.

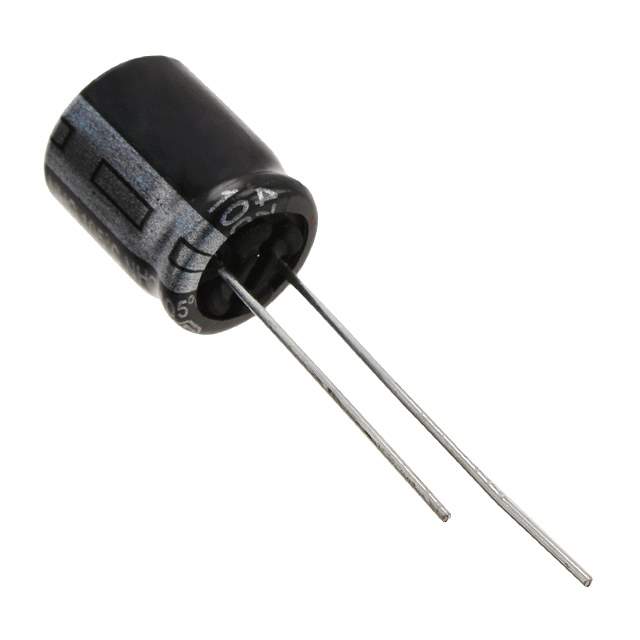

ECA-2AHG101B Real Image
Same model may have multiple batches, images only for reference.

ECA-2AHG101B

Part No ECA-2AHG101B
Manufacturer Panasonic
Catalog Aluminum Capacitors
Description CAP ALUM 100UF 20% 100V RADIAL / 100 µF 100 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Panasonic Electronic Components
Series NHG-A
Package Cut Tape (CT),Tape & Box (TB)
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 100 V
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 265 mA @ 120 Hz
Ripple Current @ High Frequency 397.5 mA @ 100 kHz
Lead Spacing 0.197" (5.00mm)
Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.866" (22.00mm)
Mounting Type Through Hole
Package / Case Radial, Can
Base Product Number ECA-2AH
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names ECA-2AHG101B-ND,ECA2AHG101B,10-ECA-2AHG101BCT,10-ECA-2AHG101BTB
Standard Package 500
Win Source Part Number 1179321-ECA-2AHG101B
Ultra Librarian 3D Model Ultra Librarian ECA-2AHG101B CAD Model

Description

The Panasonic ECA-2AHG101B is an aluminum electrolytic capacitor that belongs to the NHG-A series.

  • Series: NHG-A
  • Application: Automotive
  • Win Source Part Number: 1179321-ECA-2AHG101B
  • Capacitance: 100 µF
  • Voltage Rating: 100 V
