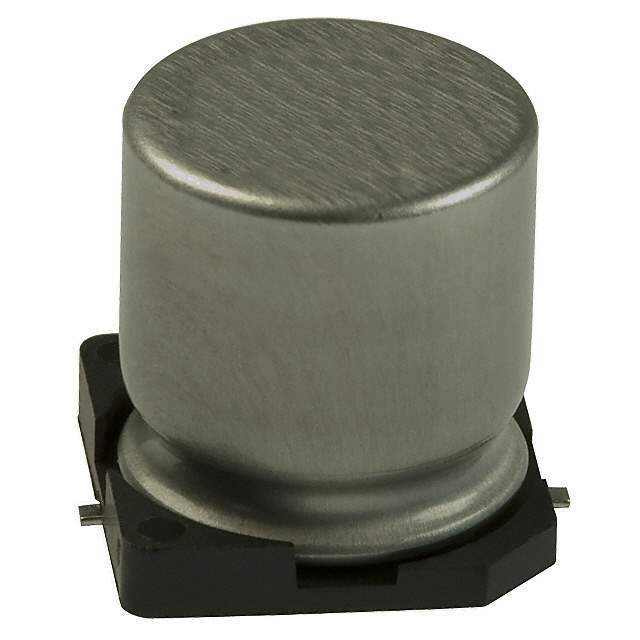

EEE-FK1J221AQ Real Image
Same model may have multiple batches, images only for reference.

EEE-FK1J221AQ

Part No EEE-FK1J221AQ
Manufacturer Panasonic
Catalog Aluminum Capacitors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Panasonic Electronic Components
Series FK
Package Tape & Reel
Capacitance 220 µF
Tolerance ±20%
Voltage - Rated 63 V
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive, High Temperature Reflow
Ripple Current @ Low Frequency 600 mA @ 120 Hz
Ripple Current @ High Frequency 800 mA @ 100 kHz
Impedance 160 mOhms
Dimension 0.492" Dia (12.50mm)
Height - Seated (Max) 0.551" (14.00mm)
Surface Mount Land Size 0.531" L x 0.531" W (13.50mm x 13.50mm)
Mounting SMD (SMT)
Package / Case Radial, Can - SMD
Base Product Number EEE-FK
Other Names EEEFK1J221AQ,PCE4853DKR,PCE4853TR,PCE4853CT,EEE-FK1J221AQ,Q3581809
Standard Package 200
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1307323-EEE-FK1J221AQ
Ultra Librarian 3D Model Ultra Librarian EEE-FK1J221AQ CAD Model

Description

The Panasonic Electronic Components aluminum electrolytic capacitor with Win Source Part Number 1307323-EEE-FK1J221AQ is a part of the FK series.

  • Series: FK
  • Capacitance: 220 µF
  • Voltage Rating: 63 V
  • Tolerance: ±20%
  • Polarization: Polar
  • Mounting: Surface Mountable
  • Package/Case: Radial, Can - SMD
  • AEC-Q200: Yes
  • Lifetime: 5000 Hrs @ 105°C
  • Applications: Automotive and High-Temperature Reflow
