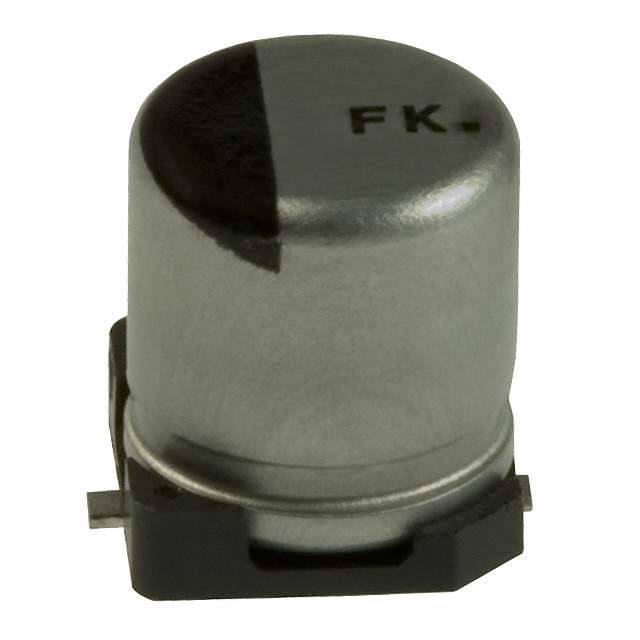

Same model may have multiple batches, images only for reference.

EEE-FK1A330R

Name: EEE-FK1A330R
Brand: Panasonic
SKU: 1330033
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	EEE-FK1A330R
Manufacturer	Panasonic
Catalog	Aluminum Capacitors
Description	CAP ALUM 33UF 20% 10V SMD / 33 µF 10 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Manufacturer	Panasonic Electronic Components
Packaging	Reel - TR
Capacitance	33 µF
Tolerance	±20%
Voltage - Rated	10 V
Lifetime @ Temp.	2000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Ratings	AEC-Q200
Applications	Automotive
Ripple Current @ Low Frequency	120 mA @ 120 Hz
Ripple Current @ High Frequency	160 mA @ 100 kHz
Impedance	700 mOhms
Size / Dimension	0.197" Dia (5.00mm)
Height - Seated (Max)	0.240" (6.10mm)
Surface Mount Land Size	0.209" L x 0.209" W (5.30mm x 5.30mm)
Mounting	Surface Mount
Case / Package	Radial, Can - SMD
Base Product Number	EEE-FK
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Other Part Number	PCE3777CT,PCE3777TR,PCE3777DKR,EEEFK1A330R
Standard Package	1,000
Win Source Part Number	1330033-EEE-FK1A330R
Ultra Librarian 3D Model	Ultra Librarian EEE-FK1A330R CAD Model

Description

The Panasonic Electronic Components EEE-FK1A330R is a surface mount aluminum electrolytic capacitor.

Capacitance: 33 µF
Rated Voltage: 10V
Tolerance: ±20%
Impedance: 700 mOhms
AEC-Q200 Rated: Yes
Lifetime: 2000 hours @ 105°C
Polarization: Polarized
Land Size: 0.209" L x 0.209" W (5.30mm x 5.30mm)
Operating Temperature Range: -55°C to 105°C
Case: Radial, Can - SMD
