Same model may have multiple batches, images only for reference.

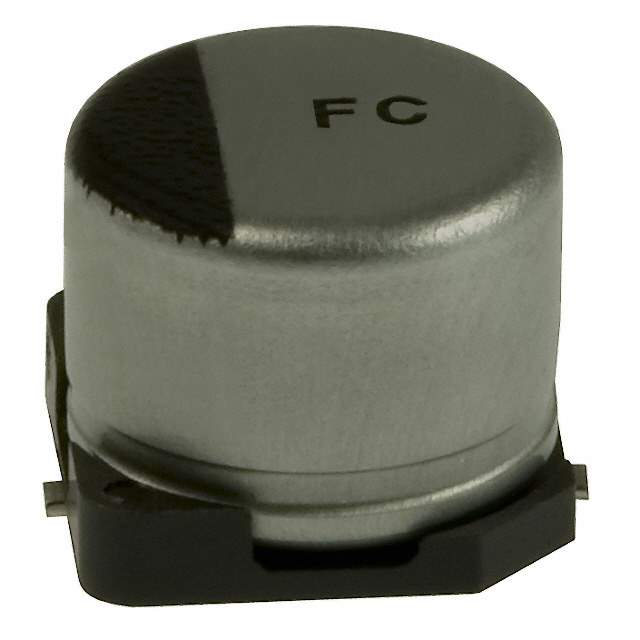

EEE-FC1V220P Real Image
Same model may have multiple batches, images only for reference.

EEE-FC1V220P

Part No EEE-FC1V220P
Manufacturer Panasonic
Catalog Aluminum Capacitors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Panasonic Electronic Components
Series FC
Package Tape & Reel
Product Status Not For New Designs
Capacitance 22 µF
Tolerance ±20%
Voltage - Rated 35 V
Lifetime @ Temp. 1000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 105 mA @ 120 Hz
Ripple Current @ High Frequency 140 mA @ 100 kHz
Impedance 1 Ohms
Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.213" (5.40mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting SMD (SMT)
Package / Case Radial, Can - SMD
Base Product Number EEE-FC
Other Names EEEFC1V220P,PCE4025CT,PCE4025TR,PCE4025DKR
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1307334-EEE-FC1V220P
Ultra Librarian 3D Model Ultra Librarian EEE-FC1V220P CAD Model

Description

The Panasonic Electronic Components EEE-FC1V220P is a high-quality aluminum electrolytic capacitor.

  • Capacitance: 22 µF
  • Voltage Rating: 35 V
  • Tolerance: ±20%
  • Operating Temperature: -40°C to 105°C
  • Polarized: Yes
  • Surface Mount Land Size: 0.260" L x 0.260" W (6.60mm x 6.60mm)
  • Application: Automotive
  • AEC-Q200: Yes
  • Ripple Current: 105 mA @ 120 Hz
  • Ripple Current: 140 mA @ 100 kHz
