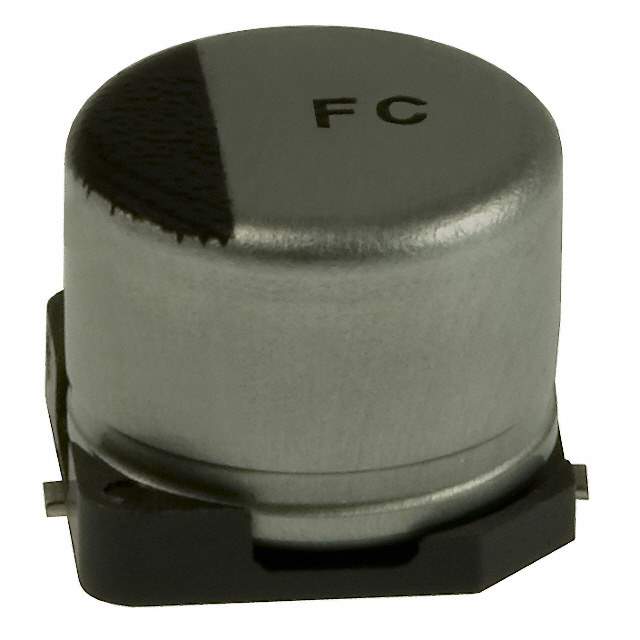

EEE-FC1E220P Real Image
Same model may have multiple batches, images only for reference.

EEE-FC1E220P

Part No EEE-FC1E220P
Manufacturer Panasonic
Catalog Aluminum Capacitors
Description CAP ALUM 22UF 20% 25V SMD / 22 µF 25 V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Product Status Not For New Designs
Capacitance 22 µF
Tolerance ±20%
Voltage - Rated 25 V
Lifetime @ Temp. 1000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 105 mA @ 120 Hz
Ripple Current @ High Frequency 140 mA @ 100 kHz
Impedance 1 Ohms
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.213" (5.40mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Surface Mount
Case / Package Radial, Can - SMD
Base Product Number EEE-FC
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Part Number EEEFC1E220P,PCE4004CT,PCE4004TR,PCE4004DKR
Standard Package 1,000
Win Source Part Number 1329663-EEE-FC1E220P
Ultra Librarian 3D Model Ultra Librarian EEE-FC1E220P CAD Model

Description

The Panasonic EEE-FC1E220P is an aluminum electrolytic capacitor that belongs to the surface mount category.

  • Packaging: Reel of 1,000 pieces
  • Capacitance: 22µF
  • Tolerance: ±20%
  • Polarized: Yes
  • Voltage Rating: 25V
  • Type: Radial, can - SMD
  • Surface Mount Land Size: 0.260” L x 0.260” W (6.60mm x 6.60mm)
  • Height Seated: 0.213” (5.40mm)
  • Size or Dimension: 0.248” Dia (6.30mm)
