Same model may have multiple batches, images only for reference.

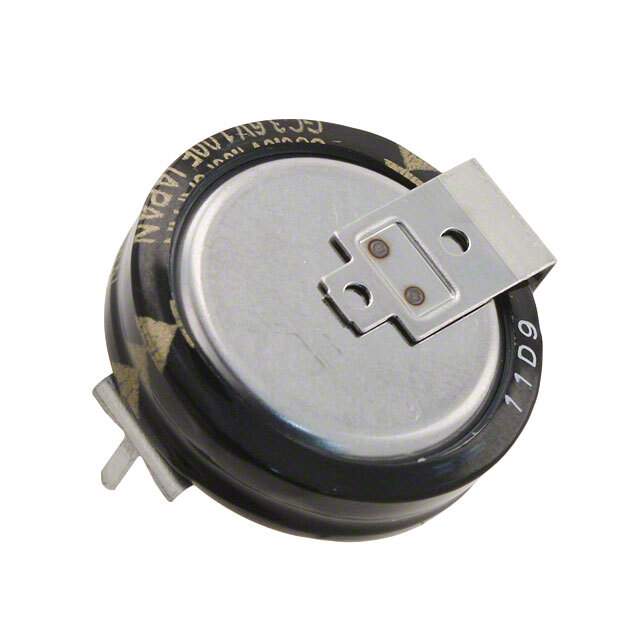

EEC-RG0V105H Real Image
Same model may have multiple batches, images only for reference.

EEC-RG0V105H

Part No EEC-RG0V105H
Manufacturer Panasonic
Catalog Electric Double Layer Capacitors, Supercaps
Description Cap Supercap 1F 3.6V -20% to 80% (19 X 6.5mm) Radial Stacked Coin 20mm 20 Ohm 2000h 85°C Tray / CAP 1F -20% +80% 3.6V T/H
Datasheet
EEC-RG0V105H Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Series RG
Packaging Bulk
Capacitance 1F
Tolerance -20%, +80%
Voltage Rating DC 3.6V
ESR (Equivalent Series Resistance) 20 Ohm @ 1kHz
Lifetime @ Temp. 2000 Hrs @ 85°C
Termination PC Pins
Mounting Style Through Hole
Package Axial, Can - Horizontal
Lead Spacing 0.787" (20.00mm)
Dimension 0.748" Dia (19.00mm)
Height - Seated (Maximum) 0.256" (6.50mm)
Operating Temperature Range -25°C ~ 85°C
Win Source Part Number 785118-EEC-RG0V105H
Popularity Medium
Supply and Demand Status Balance
Family Name RG
Introduction Date July 27, 2008
ECCN EAR99
Country of Origin Japan
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian EEC-RG0V105H CAD Model

Description

The EEC-RG0V105H from Panasonic Electronic Components is a capacitor.

  • Capacitance: 1F
  • Voltage Rating: 3.6V
  • Tolerance: -20%, +80%
  • Package: Axial, Can - Horizontal
  • Mounting Type: Through Hole
  • Packaging: Bulk
  • Operating Temperature Range: -25°C to 85°C
  • ECCN: EAR99
  • Lifetime: 2000 Hrs @ 85°C
  • Series: RG
  • Product Status: Obsolete
  • Estimated EOL Date: Not Specified
