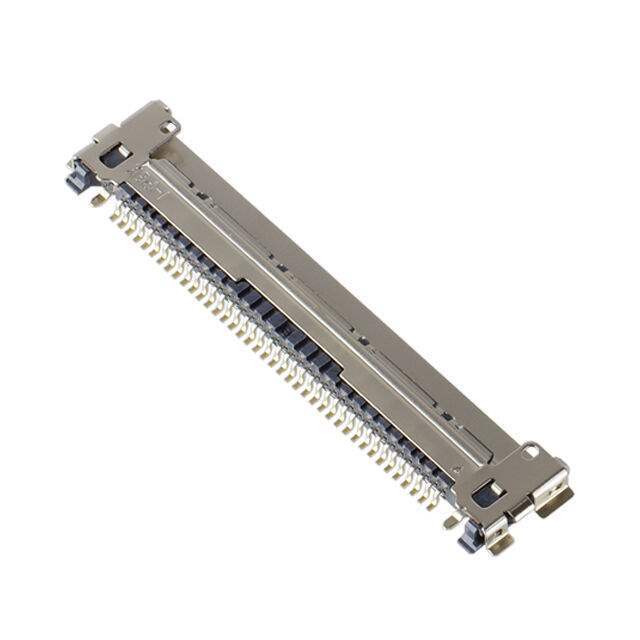

20525-020E-02 I-PEX
Same model may have multiple batches, images only for reference.

20525-020E-02

Part No 20525-020E-02
Manufacturer I-Pex
Catalog Rectangular Connectors
Description CABLINE-CA RECEPTACLE 20P
Datasheet
20525-020E-02 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects >Rectangular Connectors >Headers, Receptacles, Female Sockets
Manufacturer I-PEX
Packaging  Tape & Reel (TR) Cut Tape (CT)
Part Status Active
Connector Type Receptacle
Contact Type Female Socket
Style Board to Cable/Wire
Number of Positions 20
Number of Positions Loaded All
Pitch - Mating 0.016" (0.40mm)
Ultra Librarian 3D Model Ultra Librarian 20525-020E-02 CAD Model

Description

High-data-rate transfer, mechanical lock with shielding and multi-point ground, 0.4mm pitch, Horizontal mating type micro-coaxial connector
