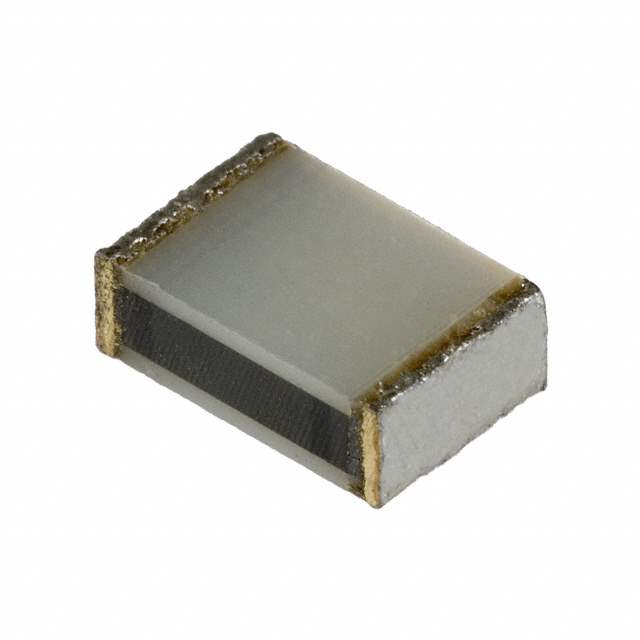

ECW-U1124JC9 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Active
Capacitance 0.12μF
Tolerance ±5%
Voltage Rating - DC 100V
Temperature Range - Operating -55°C to 125°C
Mounting SMD (SMT)
Dimension 0.236" L x 0.161" W (6.00mm x 4.10mm)
Height - Seated (Max) 0.102" (2.60mm)
Termination Solder Pads
Applications General Purpose
Win Source Part Number 000991-ECW-U1124JC9
Popularity Medium
Supply and Demand Status Balance
Quantity per package 2k pcs
Ultra Librarian 3D Model Ultra Librarian ECW-U1124JC9 CAD Model

Description

ECW-U1124JC9 - Robust Film Capacitor

With robust construction and a focus on reliability, the ECW-U1124JC9 is a top choice for applications that require consistent performance.

  • Applications:
    • Industrial automation
    • Signal coupling and decoupling
    • Broadcasting equipment
  • Features and Benefits:
    • Superior electrical insulation
    • Long operational life
    • Designed to minimize obsolescence
  • Additional Details:
    • Voltage rating: 630V
    • Capacitance: 4.7μF
    • Form factor: Space-efficient
