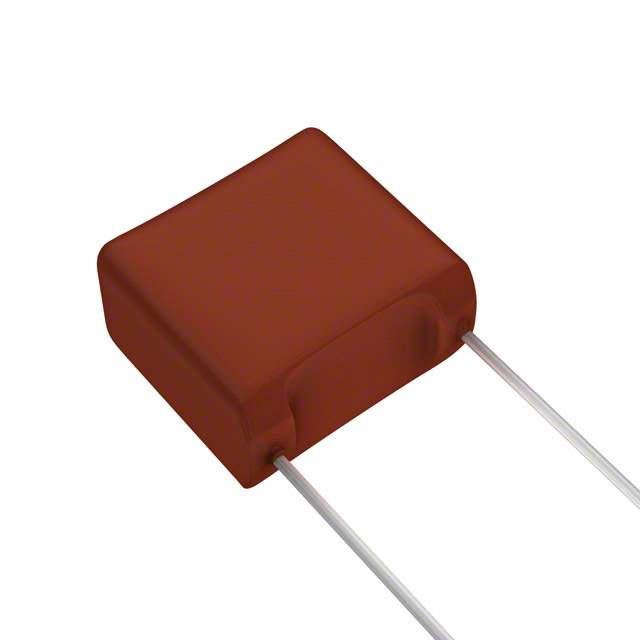

ECW-FA2J474J Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Manufacturer Panasonic Electronic Components
Packaging Bulk
Capacitance 0.47μF
Tolerance ±5%
Voltage Rating - DC 630V
Dielectric Material Polypropylene (PP), Metallized
Temperature Range - Operating -40°C ~ 105°C
Mounting Style Through Hole
Manufacturer Package Radial
Dimension 0.717" L x 0.394" W (18.20mm x 10.00mm)
Height - Seated (Maximum) 0.594" (15.10mm)
Termination PC Pins
Lead Spacing 0.591" (15.00mm)
Applications High Frequency, Switching
Manufacturer Pack Quantity 100
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 806721-ECW-FA2J474J
Ultra Librarian 3D Model Ultra Librarian ECW-FA2J474J CAD Model

Description

The Panasonic Electronic Components ECW-FA2J474J is a high-quality electronic component that is used in high frequency and switching applications.

  • Capacitance: 0.47μF
  • Tolerance: ±5%
  • Lead Spacing: 0.591” (15.00mm)
  • Dielectric Material: Polypropylene (PP), metallized
  • Operating Temperature Range: -40°C to 105°C
  • Dimension: 0.717” L x 0.394” W (18.20mm x 10.00mm)
  • Manufacturer Package: Radial
  • Height (seated, maximum): 0.594” (15.10mm)
  • Popularity: Medium
  • Status: Balanced
  • Manufacturer Pack Quantity: 100
  • MSL Level: 1 (Unlimited)
