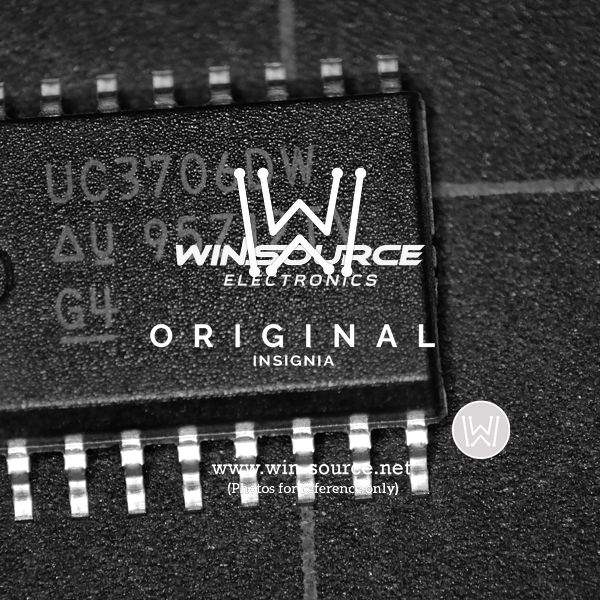

The UC3706DW from Texas Instruments is a robust, high-performance motor driver integrated circuit designed to drive a wide range of motors with precision and efficiency. This dual-channel driver is capable of delivering power to bipolar stepper motors, brushless DC motors, and other types of motors that require a bidirectional current drive.
Key Features
- Dual H-Bridge Configuration: The UC3706DW is equipped with two H-bridge drivers, allowing for independent control of two motors or full control of a stepper motor.
- High Output Current: This driver can deliver up to 1.5A per channel, providing the necessary current for a wide range of motor applications.
- Wide Operating Voltage Range: The device operates over a supply voltage range of 10V to 40V, making it versatile for various power supply configurations.
- Integrated Protection Features: It includes thermal shutdown, over-current protection, and under-voltage lockout to ensure safe operation under different conditions.
- Logic Level Inputs: TTL and CMOS compatible inputs allow for easy interfacing with microcontrollers and other logic devices.
- High Efficiency: The use of MOSFET output transistors provides low on-resistance, resulting in lower heat dissipation and higher efficiency.
Applications
The UC3706DW is suitable for a variety of applications where precise motor control is required. These include:
- Automated machinery
- Robotics
- Process control systems
- Printers and plotters
- CNC machines
Product Specifications
Attribute
Value
Part Number
UC3706DW
Package / Case
SOIC-16
Mounting Type
Surface Mount
RoHS
Compliant
For designers and engineers looking for a reliable and efficient solution for their motor driving needs, the Texas Instruments UC3706DW offers the performance and features necessary to drive motors in a wide array of applications.
