Same model may have multiple batches, images only for reference.

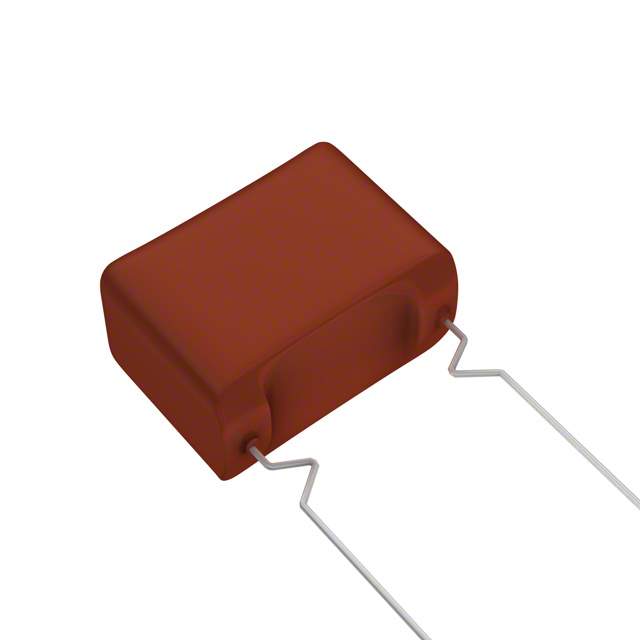

ECW-F2685JAQ Real Image
Same model may have multiple batches, images only for reference.

ECW-F2685JAQ

Part No ECW-F2685JAQ
Manufacturer Panasonic
Catalog Film Capacitors
Description CAP FILM 6.8UF 5% 250VDC RADIAL / 6.8 µF Film Capacitor 250V Polypropylene (PP), Metallized Radial
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Film Capacitors
Mfr Panasonic Electronic Components
Series ECW-F(A)
Package Bulk
Capacitance 6.8 µF
Tolerance ±5%
Voltage Rating - DC 250V
Dielectric Material Polypropylene (PP) , Metallized
Temperature Range - Operating -40°C ~ 105°C
Mounting Type Through Hole
Package / Case Radial
Size / Dimension 0.937" L x 0.701" W (23.80mm x 17.80mm)
Height - Seated (Max) 1.260" (32.00mm)
Termination PC Pins
Lead Spacing 0.787" (20.00mm)
Applications High Frequency, Switching
Base Product Number ECW-F2685
Standard Package 100
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0070
Win Source Part Number 1337657-ECW-F2685JAQ
Ultra Librarian 3D Model Ultra Librarian ECW-F2685JAQ CAD Model

Description

The Panasonic ECW-F2685JAQ is a film capacitor that has a capacitance of 6.8 µF and a tolerance of ±5%.

  • Series: ECW-F(A)
  • Termination: PC Pins
  • Applications: High-Frequency and Switching
  • Voltage Rating: 250V DC
  • Dielectric Material: Polypropylene (PP), Metallized
  • Mounting Type: Through Hole
  • Package/Case: Radial
  • Standard Package: 100
  • Height: 1.260" (32.00mm) when seated
  • Temperature Range: -40°C to 105°C
  • Manufacturer: Panasonic Electronic Components
