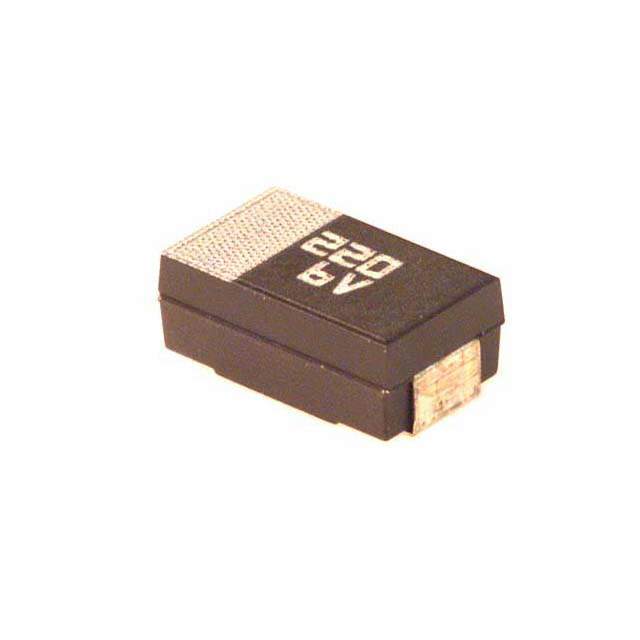

The Panasonic ECS-T0JD227R is a surface-mount tantalum capacitor designed for general-purpose applications requiring stable capacitance and reliable performance. It is part of Panasonic's POSCAP (Polymer Tantalum Solid Capacitor) series, known for their low ESR (Equivalent Series Resistance) and excellent frequency characteristics.

Applications

• DC-DC converters
• Power management circuits
• Filtering and decoupling in electronic devices
• Noise reduction in signal lines
• Voltage stabilization in automotive electronics
• Portable electronic devices (smartphones, tablets)

Features

• 220uF Capacitance
• 6.3V Rated Voltage
• Low ESR (Equivalent Series Resistance)
• Surface Mount Technology (SMT)
• High ripple current capability
• Stable capacitance over temperature and frequency

Benefits

• Reduces voltage ripple and noise in power circuits
• Improves the efficiency of DC-DC converters
• Provides stable and reliable performance in various applications
• Enables compact and lightweight designs
• Reduces heat generation
• Extends the lifespan of electronic devices

Additional Details

The ECS-T0JD227R POSCAP capacitor utilizes a sintered tantalum anode and a conductive polymer cathode, resulting in low ESR and excellent frequency characteristics. This construction also provides high ripple current capability, making it suitable for demanding applications. The capacitor's surface-mount design allows for easy integration into automated assembly processes. It is available in a compact case size, minimizing board space requirements. The capacitor exhibits stable capacitance over a wide range of temperatures and frequencies, ensuring consistent performance. It is commonly used in power management circuits, DC-DC converters, and filtering applications. The ECS-T0JD227R is designed to meet industry standards for reliability and performance. The ESR is a critical parameter affecting the performance of capacitors in switching power supplies and other high-frequency circuits. Lower ESR results in reduced heat generation and improved efficiency. The capacitor is lead-free and RoHS compliant. The specified operating temperature range ensures reliable operation under varying conditions.
