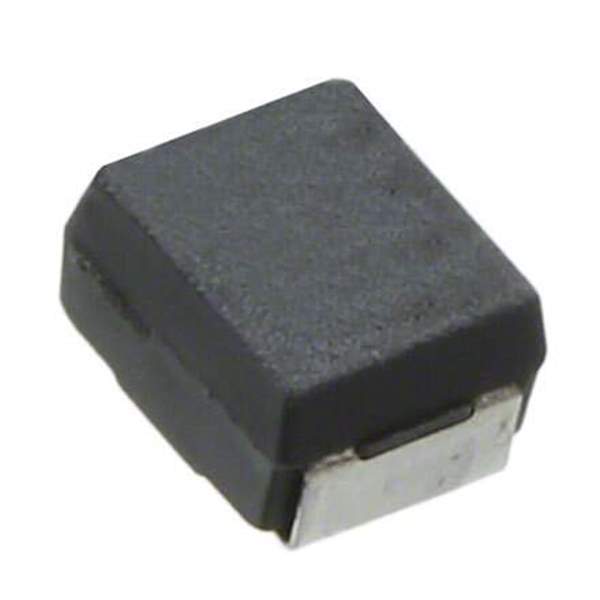

ECS-H1AX475R Real Image
Same model may have multiple batches, images only for reference.

ECS-H1AX475R

Part No ECS-H1AX475R
Manufacturer Panasonic
Catalog Tantalum Capacitors
Description CAP TANT 4.7UF 20% 10V 1411 / 4.7 µF Molded Tantalum Capacitors 10 V 1411 (3528 Metric)
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Tantalum Capacitors
Mfr Panasonic Electronic Components
Series TEH
Package Tape & Reel
Product Status Obsolete
Capacitance 4.7 µF
Tolerance ±20%
Voltage - Rated 10 V
Type Molded
Temperature Range - Operating -55°C ~ 125°C
Mounting SMD (SMT)
Package / Case 1411 (3528 Metric)
Dimension 0.138" L x 0.110" W (3.50mm x 2.80mm)
Height - Seated (Max) 0.083" (2.10mm)
Manufacturer Size Code X
Features General Purpose
Base Product Number ECS-H1
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8532.21.0050
Other Names ECST1AX475R,PCT2475CT,PCT2475DKR,PCT2475TR,ECSH1AX475R,ECS-T1AX475R,PCT2475
Standard Package 2,000
Win Source Part Number 975453-ECS-H1AX475R
Ultra Librarian 3D Model Ultra Librarian ECS-H1AX475R CAD Model

Description

The Panasonic Electronic Components TEH series capacitor is a molded tantalum capacitor with general-purpose features.

  • Manufacturer: Panasonic Electronic Components
  • Series: TEH
  • Type: Molded tantalum capacitor
  • Features: General-purpose
  • Capacitance: 4.7 µF
  • Tolerance: ±20%
  • Voltage Rating: 10 V
  • ESR: Not mentioned
  • Mounting: Surface-mount device (SMD)
  • Package Size: 1411 (3528 Metric)
  • Seated Height: 0.083" (2.10mm)
  • RoHS Compliant: No
