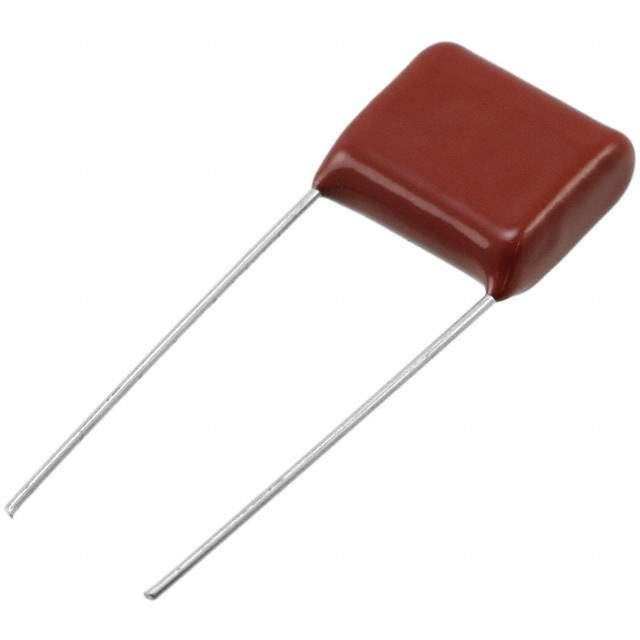

ECQ-E4474KF Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr Panasonic Electronic Components
Series ECQ-E(F)
Package Bulk
Capacitance 0.47 µF
Tolerance ±10%
Voltage Rating - AC 200V
Voltage Rating - DC 400V
Dielectric Material Polyester, Metallized
Temperature Range - Operating -40°C ~ 105°C
Mounting Type Through Hole
Package / Case Radial
Dimension 0.728" L x 0.307" W (18.50mm x 7.80mm)
Height - Seated (Max) 0.709" (18.00mm)
Termination PC Pins
Lead Spacing 0.591" (15.00mm)
Applications General Purpose
Base Product Number ECQ-E4474
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0010
Other Names EF4474-NDR,Q506891B,ECQE4474KF,EF4474
Standard Package 100
Win Source Part Number 988851-ECQ-E4474KF
Ultra Librarian 3D Model Ultra Librarian ECQ-E4474KF CAD Model

Description

The ECQ-E4474KF is a film capacitor manufactured by Panasonic Electronic Components.

  • Capacitance: 0.47μF
  • Tolerance: ±10%
  • Application: General-purpose
  • Voltage Rating: 200V AC and 400V DC
  • Package: Radial packaged
  • Lead Spacing: 15.00mm
  • Supply and Demand Status: Shortage
