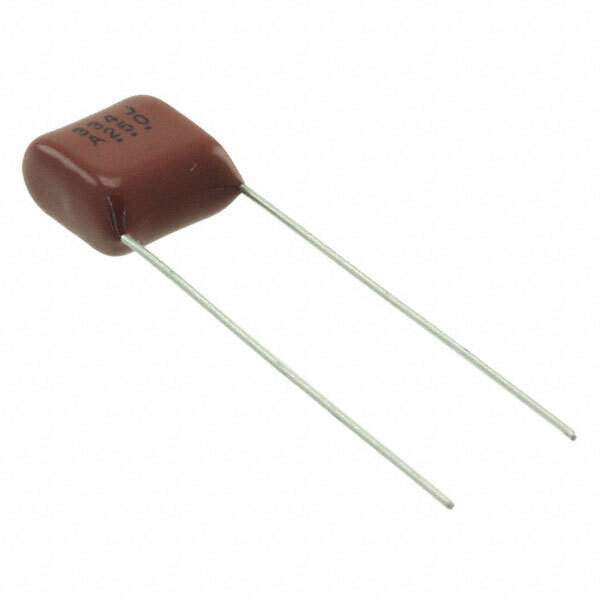

ECQ-E2334JB Real Image
Same model may have multiple batches, images only for reference.

ECQ-E2334JB

Part No ECQ-E2334JB
Manufacturer Panasonic
Catalog Film Capacitors
Description CAP FILM 0.33UF 5% 250VDC RADIAL / 0.33 µF Film Capacitor 125V 250V Polyester, Metallized Radial
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Film Capacitors
Mfr Panasonic Electronic Components
Series ECQ-E(B)
Package Bulk
Capacitance 0.33 µF
Tolerance ±5%
Voltage Rating - AC 125V
Voltage Rating - DC 250V
Dielectric Material Polyester, Metallized
Temperature Range - Operating -40°C ~ 105°C
Mounting Type Through Hole
Package / Case Radial
Size / Dimension 0.406" L x 0.252" W (10.30mm x 6.40mm)
Height - Seated (Max) 0.484" (12.30mm)
Termination PC Pins
Lead Spacing 0.295" (7.50mm)
Applications General Purpose
Base Product Number ECQ-E2334
Standard Package 100
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0070
Win Source Part Number 1337378-ECQ-E2334JB
Ultra Librarian 3D Model Ultra Librarian ECQ-E2334JB CAD Model

Description

The Panasonic Electronic Components ECQ-E(B) film capacitor is a high-quality component designed for general-purpose applications.

  • Capacitance: 0.33 µF
  • Tolerance: ±5%
  • Voltage Rating: 125V AC / 250V DC
  • Dielectric Material: Polyester and metallized
  • Mounting Type: Through-hole
  • Package Size: 0.406" L x 0.252" W (10.30mm x 6.40mm)
  • Height: 0.484" (12.30mm) seated
  • Package: Radial
  • Operating Temperature: -40°C to 105°C
